CARPAL BONES ANATOMY

Author: Dr. Bogdan Leahu
← Bones of Hand Metacarpal Bones →
Carpal bones anatomy 360-degree interactive viewer showing eight wrist bones arranged in proximal and distal rows with articulation surfaces
3D OSTEOLOGY
Get the Full 3D Experience

Carpal Bones - Overview, Preview from the app. Download 3D OSTEOLOGY for full 3D control—multiple views, x-ray mode, and unlimited zoom.

TABLE OF CONTENTS

GENERAL CHARACTERISTICS

What are the carpal bones?

  • The carpal bones consist of a total of eight bones arranged in two distinct rows
  • This arrangement provides stability and flexibility to your wrist joint

What are the two rows of carpal bones?

  • Proximal row: Scaphoid, lunate, triquetral, and pisiform
  • Distal row: Trapezium, trapezoid, capitate, and hamate

PROXIMAL ROW OF CARPAL BONES

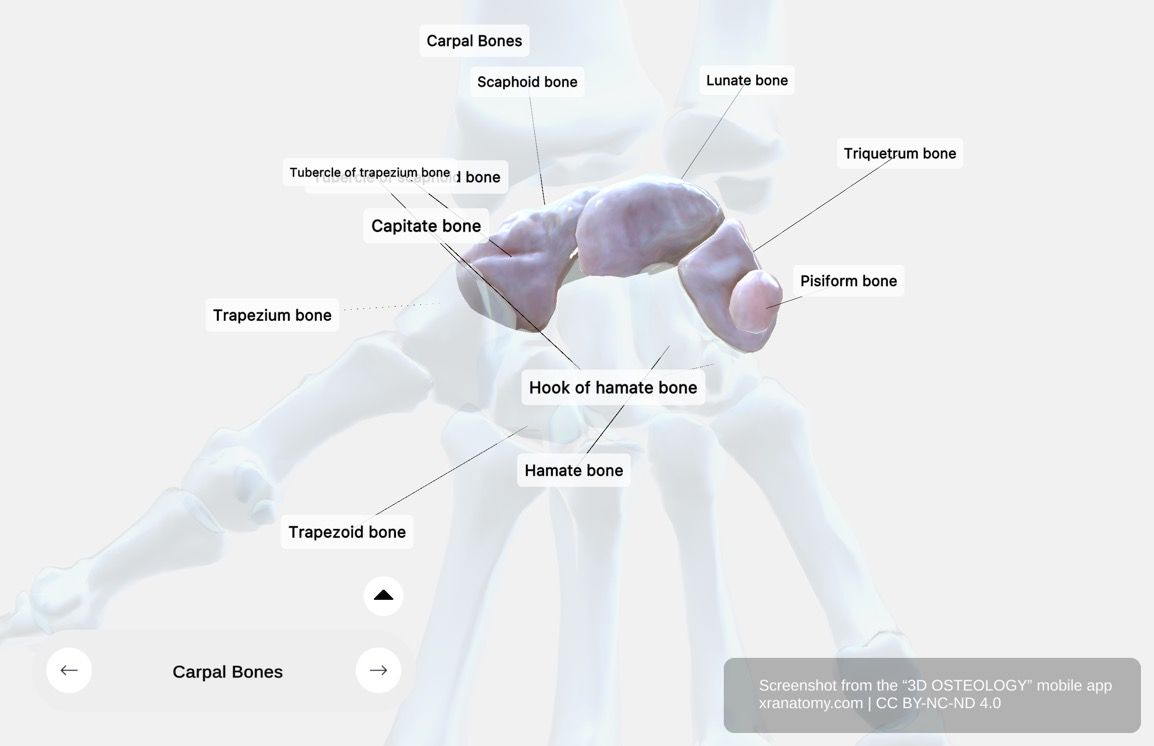

Proximal row of carpal bones 360-degree viewer showing scaphoid, lunate, triquetral, and pisiform bones with articulation surfaces
3D OSTEOLOGY
Get the Full 3D Experience

Proximal Row of Carpal Bones, Preview from the app. Download 3D OSTEOLOGY for full 3D control—multiple views, x-ray mode, and unlimited zoom.

1. Scaphoid (Navicular)

What is the structure of the scaphoid?

  • Largest bone of the proximal row, boat-shaped
  • Proximal surface: Convex, smooth, triangular, articulates with the radius

What is the scaphoid tubercle?

  • Tubercle:
    • Located on the volar surface
    • Directed forwards
    • Attachment point for the transverse carpal ligament and occasionally Abductor pollicis brevis fibers

2. Lunate (Semilunar)

What is the structure of the lunate?

  • Deeply concave with a crescentic outline
  • Located in the center of the proximal row, between scaphoid and triquetral bones

What are the surfaces of the lunate?

  • Proximal: Convex, articulates with the radius
  • Distal: Deeply concave, articulates with the head of the capitate bone

3. Triquetral (Cuneiform)

What is the structure of the triquetral?

  • Pyramidal shape
  • Located on the ulnar side of the proximal row

What is the key feature of the triquetral?

  • Oval facet for articulation with the pisiform bone

4. Pisiform

What is the structure of the pisiform?

  • Smallest proximal carpal bone
  • Positioned in front of the triquetral bone

What is the key feature of the pisiform?

  • Single oval facet on the dorsal surface for articulation with the triquetral bone

DISTAL ROW OF CARPAL BONES

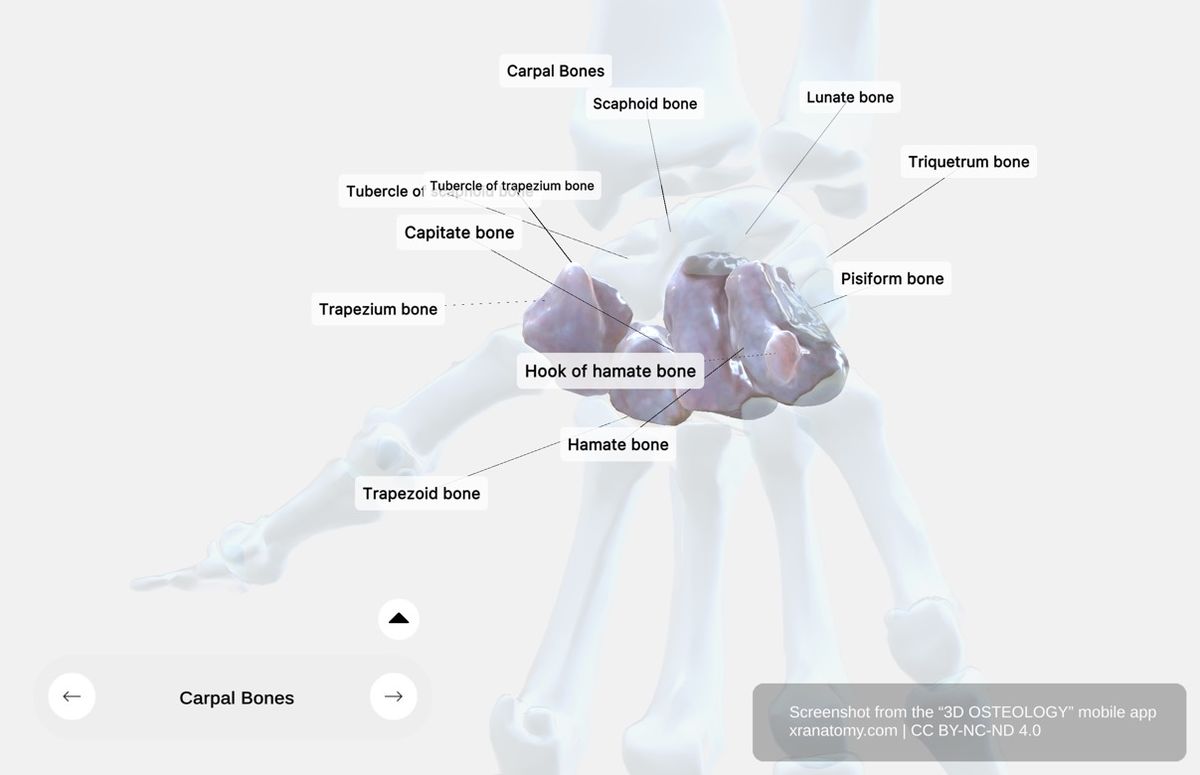

Distal row of carpal bones 360-degree viewer showing trapezium, trapezoid, capitate, and hamate bones with hook of hamate
3D OSTEOLOGY
Get the Full 3D Experience

Distal Row of Carpal Bones, Preview from the app. Download 3D OSTEOLOGY for full 3D control—multiple views, x-ray mode, and unlimited zoom.

1. Trapezium (Greater Multangular)

Where is the trapezium located?

  • Radial side of the carpus, between the scaphoid and first metacarpal bone

What are the features of the trapezium?

  • Deep groove on the volar surface
  • Tubercle:
    • Located on the upper volar surface
    • Attachment point for the transverse carpal ligament and your thumb muscles

2. Trapezoid (Lesser Multangular)

What is the structure of the trapezoid?

  • Smallest distal carpal bone, wedge-shaped

What are the features of the trapezoid?

  • Four articular facets separated by sharp edges

3. Capitate

What is the structure of the capitate?

  • Largest carpal bone, central in your wrist

What are the features of the capitate?

  • Proximal head: Rounded, articulates with scaphoid and lunate bones
  • Neck and distal body

4. Hamate (Unciform)

What is the structure of the hamate?

  • Wedge-shaped

What is the hamulus (hook of hamate)?

  • Hamulus (Hook of Hamate):
    • Curved projection from the volar surface
    • Directed forwards and laterally
    • Attachment point for the transverse carpal ligament and muscles

BIBLIOGRAPHY

1. Henry G, Warren HL. Osteology. In: Anatomy of the Human Body. 20th ed. Philadelphia: Lea & Febiger; 1918. p. 129–97.
