Author: Dr. Bogdan Leahu
← Vertebral Column Overview Atlas (C1) →

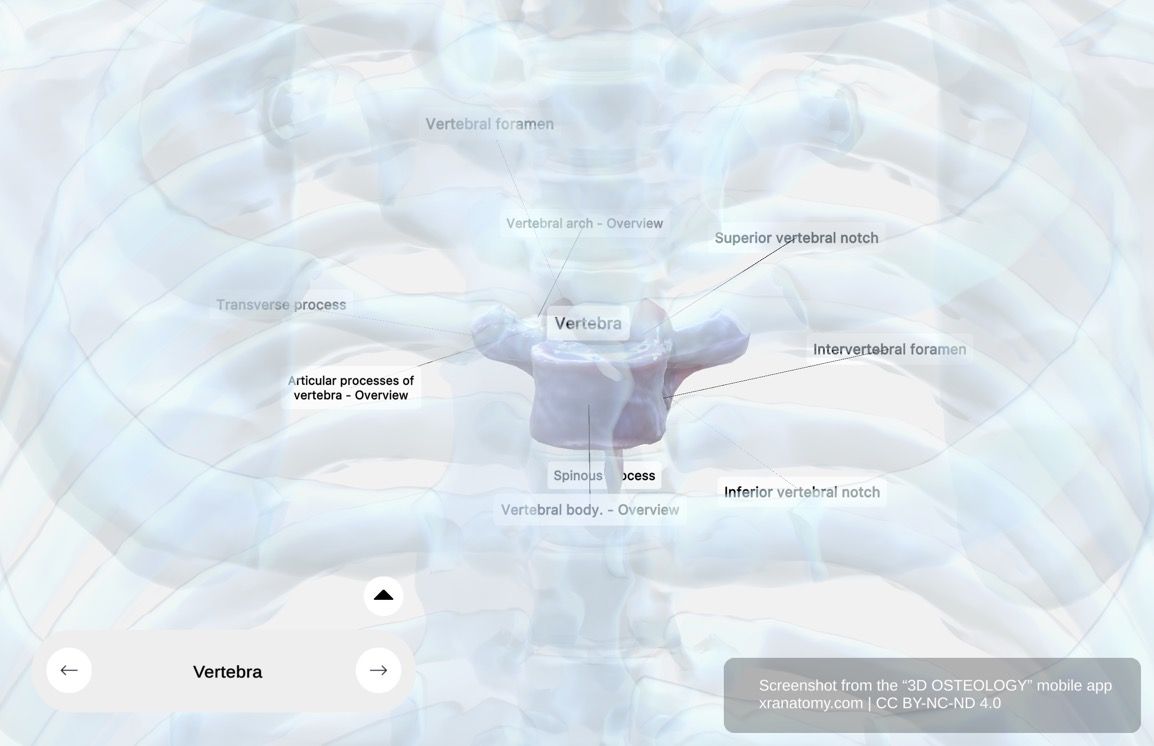

Vertebra anatomy 360-degree interactive viewer showing vertebral body, arch, foramen, spinous process, transverse process, and articular processes
3D OSTEOLOGY
Get the Full 3D Experience

Vertebra - General Structure, Preview from the app. Download 3D OSTEOLOGY for full 3D control—multiple views, x-ray mode, and unlimited zoom.

TABLE OF CONTENTS

GENERAL CHARACTERISTICS

What are vertebrae?

  • Vertebrae are individual bones that stack to form your spine
  • Provide structural support, protect your spinal cord, and enable movement in the cervical, thoracic, and lumbar regions
  • In the sacrum and coccyx, vertebrae fuse to form stationary bones

What are the main parts of a vertebra?

  • Each vertebra consists of a body, an arch, and multiple processes

INTERVERTEBRAL FORAMEN

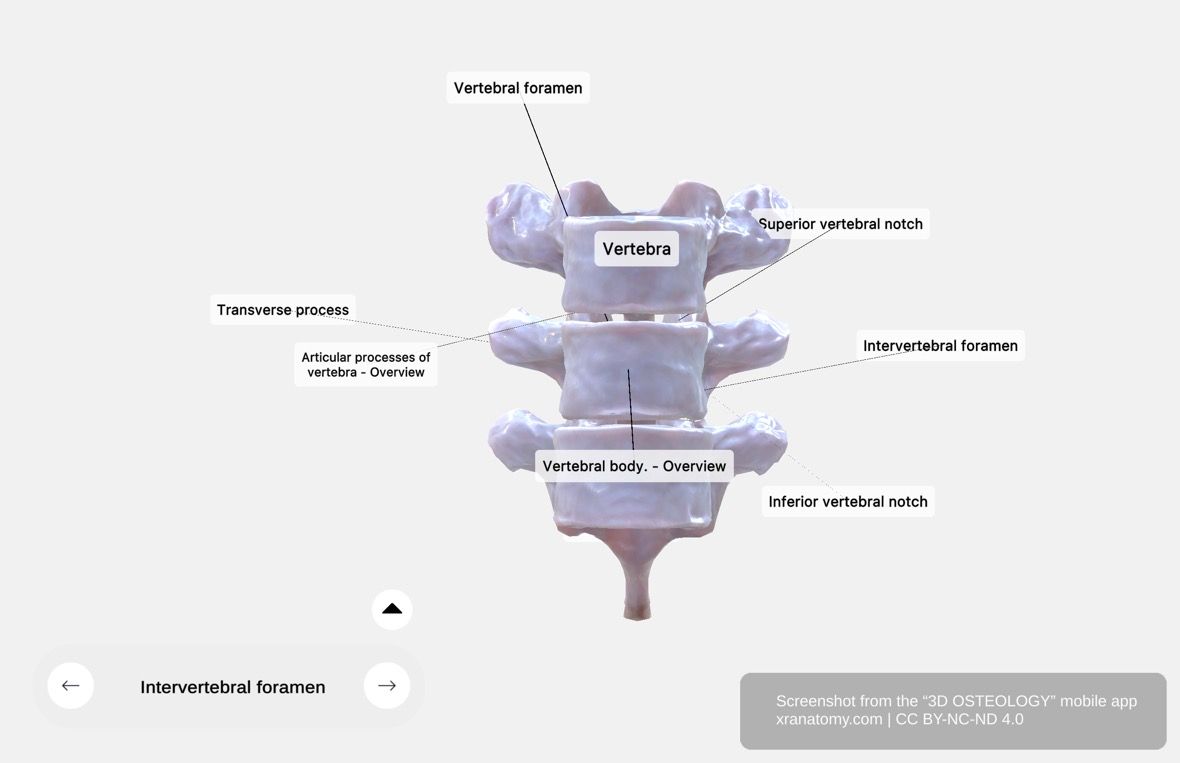

Intervertebral foramen 360-degree viewer showing opening between adjacent vertebrae formed by superior and inferior vertebral notches
3D OSTEOLOGY
Get the Full 3D Experience

Intervertebral Foramen, Preview from the app. Download 3D OSTEOLOGY for full 3D control—multiple views, x-ray mode, and unlimited zoom.

Intervertebral Foramen

What is the intervertebral foramen?

  • Opening between adjacent vertebrae
  • Formed by alignment of superior and inferior vertebral notches
  • Allows spinal nerves to pass, connecting your spinal cord to your body

Superior Vertebral Notch

What is the superior vertebral notch?

  • Indentation in the pedicle
  • Aligns with the inferior notch of the adjacent vertebra to form the intervertebral foramen

Inferior Vertebral Notch

What is the inferior vertebral notch?

  • Indentation in the pedicle
  • Aligns with the superior notch of the adjacent vertebra to form the intervertebral foramen

VERTEBRAL FORAMEN AND PROCESSES

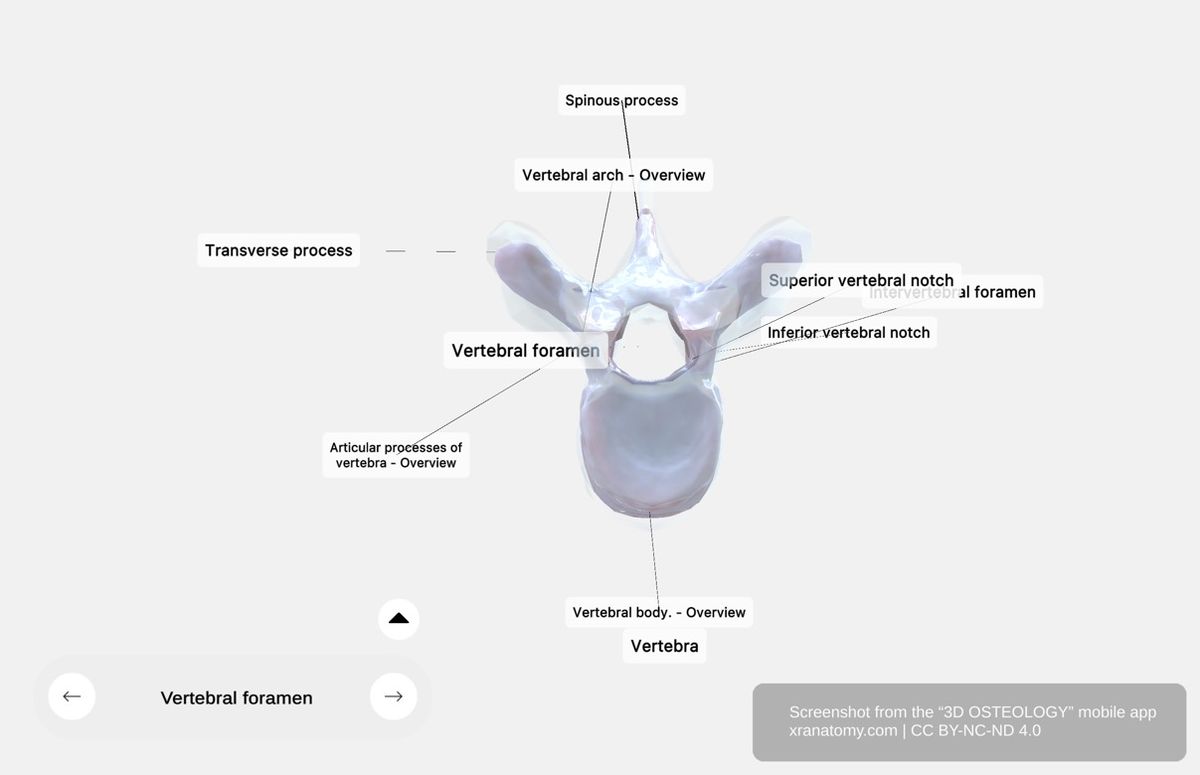

Vertebral foramen 360-degree viewer showing central opening, spinous process, transverse processes, and articular processes
3D OSTEOLOGY
Get the Full 3D Experience

Vertebral Foramen and Processes, Preview from the app. Download 3D OSTEOLOGY for full 3D control—multiple views, x-ray mode, and unlimited zoom.

Vertebral Foramen

What is the vertebral foramen?

  • Large central opening within each vertebra
  • Accommodates and protects your spinal cord
  • Forms part of the vertebral canal

Spinous Process

What is the spinous process?

  • Bony projection extending backward from the junction of the laminae
  • Visible from the posterior aspect
  • Serves as an attachment point for your muscles and ligaments

Transverse Process

What is the transverse process?

  • Lateral projection extending from the junction of the pedicle and lamina
  • Visible from the side of the vertebra
  • Provides attachment points for your muscles and ligaments
  • Supports vertebral movement and stability

Articular Processes

What are the articular processes?

  • Each vertebra has two superior and two inferior articular processes
  • Functions:
    • Allow controlled movement between your vertebrae
    • Provide stability to your vertebral column

What is the superior articular process?

  • Upward-facing joint surface located posteriorly on the vertebra
  • Superior Articular Facet — smooth, flat surface of the superior articular process

What is the inferior articular process?

  • Downward-facing joint surface located on the posterior part of the vertebra
  • Inferior Articular Facet (Facies articularis caudalis) — smooth, flat surface of the inferior articular process

VERTEBRAL BODY

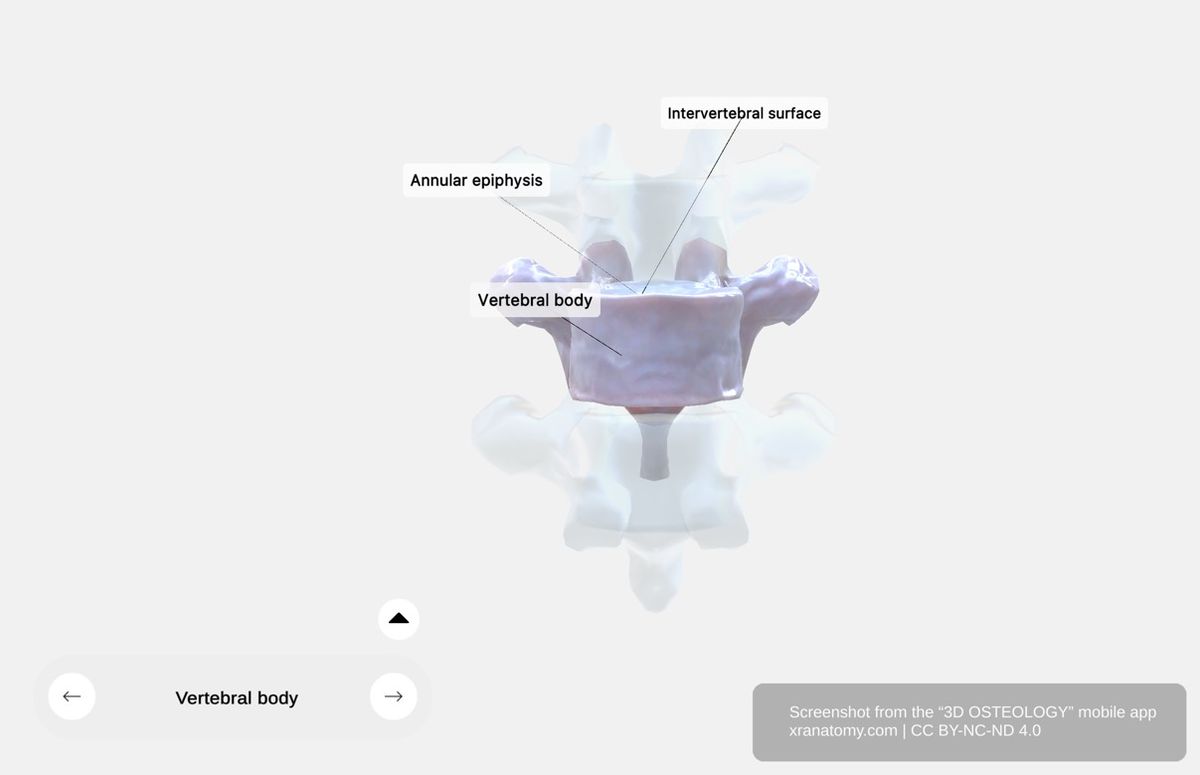

Vertebral body 360-degree viewer showing anterior weight-bearing portion, intervertebral surfaces, annular epiphysis, and vertebral arch
3D OSTEOLOGY
Get the Full 3D Experience

Vertebral Body and Arch, Preview from the app. Download 3D OSTEOLOGY for full 3D control—multiple views, x-ray mode, and unlimited zoom.

What is the vertebral body?

  • The vertebral body forms the anterior, weight-bearing portion of most vertebrae
  • Increases in size from the cervical to lumbar regions to accommodate greater loads
  • Ensures proper support and distribution of your body weight
  • Functions:
    • Provides support for your vertebral column
    • Connects with intervertebral discs to absorb mechanical stress

Intervertebral Surface

What is the intervertebral surface?

  • Flattened upper and lower surfaces of the vertebral body
  • Interfaces directly with adjacent vertebrae
  • Provides attachment for intervertebral discs
  • Supports stability and flexibility of your spine

Annular Epiphysis

What is the annular epiphysis?

  • Ring-like structure around the margins of the vertebral body (top and bottom surfaces)
  • Functions:
    • Connects vertebrae to intervertebral discs
    • Supports the overall structure of your vertebral column

VERTEBRAL ARCH

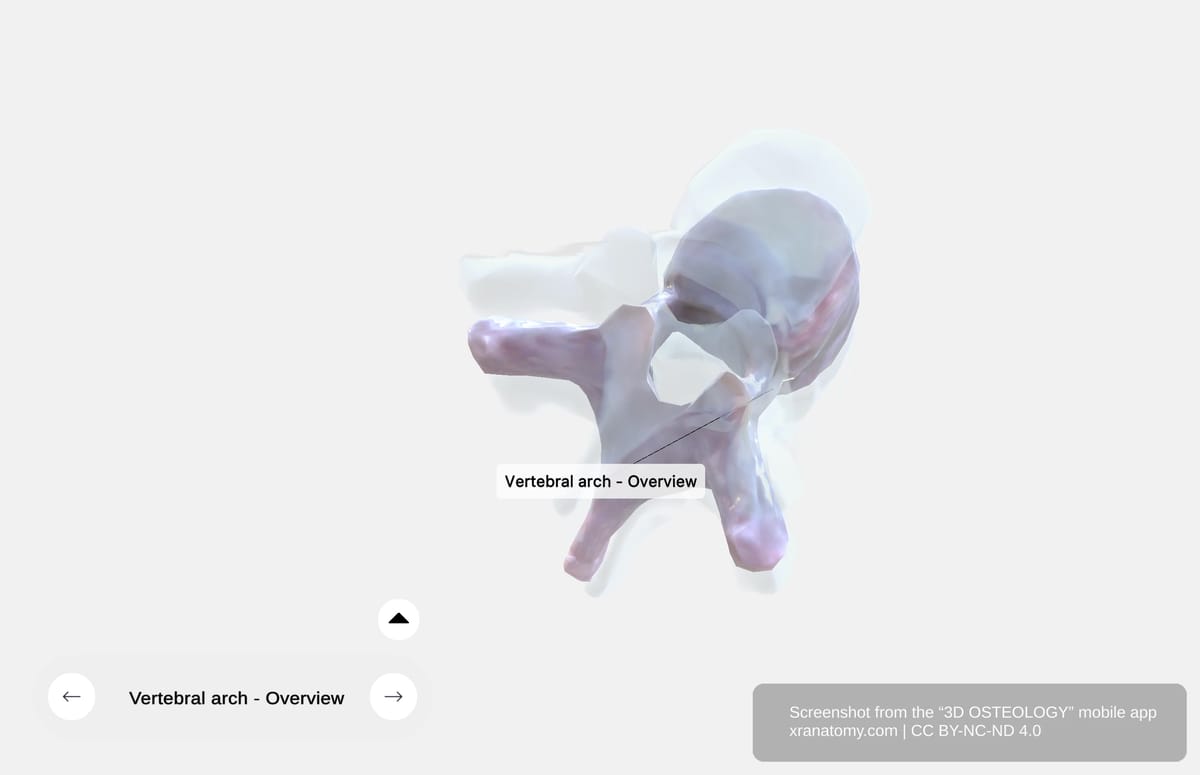

Vertebral arch anatomy showing pedicles connecting vertebral body to laminae, with spinous and transverse processes extending from the arch
3D OSTEOLOGY
Vertebral Arch Overview, Preview from the app. Licensed under CC BY-NC-ND 4.0. Sourced from 3D OSTEOLOGY.

What is the vertebral arch?

  • The vertebral arch forms the posterior part of the vertebra
  • Surrounds and protects your spinal cord
  • Consists of two main components: the pedicles and laminae
  • Serves as an attachment point for various processes:
    • Articular processes for connecting adjacent vertebrae
    • Transverse processes for muscle and ligament attachment

Pedicles

What are the pedicles?

  • Short, thick projections that connect the vertebral body to the vertebral arch
  • Referred to as the roots of the vertebral arch
  • Extend backward from the vertebral body at the junctions of its lateral and posterior surfaces

Laminae

What are the laminae?

  • Flat or arched portions of the vertebral arch
  • Connect transverse processes to the spinous process
  • Form the posterior boundary of the vertebral foramen

BIBLIOGRAPHY

1. Henry G, Warren HL. Osteology. In: Anatomy of the Human Body. 20th ed. Philadelphia: Lea & Febiger; 1918. p. 129–97.
