CLAVICLE ANATOMY

Author: Dr. Bogdan Leahu
← Scapula Humerus →

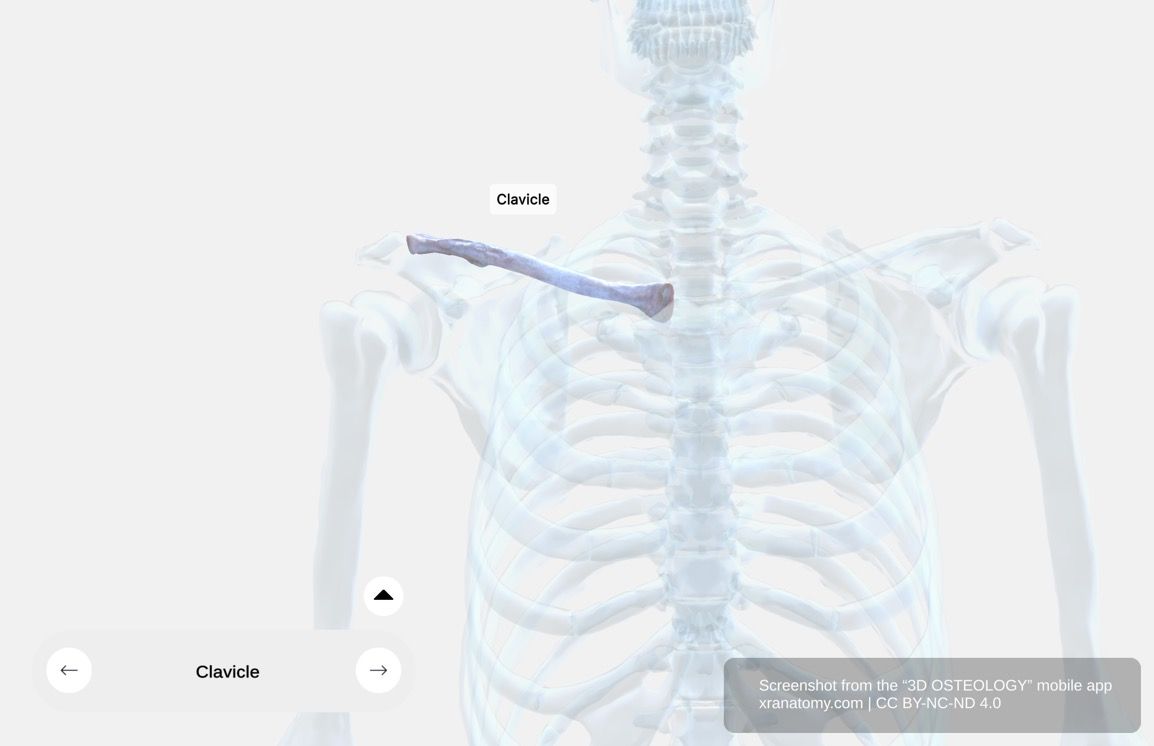

Clavicle anatomy 360-degree interactive viewer showing sternal end, body, acromial end, conoid tubercle, trapezoid line, and articular surfaces of the collarbone
3D OSTEOLOGY
Get the Full 3D Experience

Clavicle - General Overview, Preview from the app. Download 3D OSTEOLOGY for full 3D control—multiple views, x-ray mode, and unlimited zoom.

TABLE OF CONTENTS

CONNECTIONS

Medial (Inner) End

What does the medial end of the clavicle articulate with?

  • Articulates with the manubrium of your breastbone
  • Forms the sternoclavicular joint with the articular disc

Lateral (Outer) End

What does the lateral end of the clavicle articulate with?

  • Articulates with the acromion of your scapula (acromial end)

STERNAL END

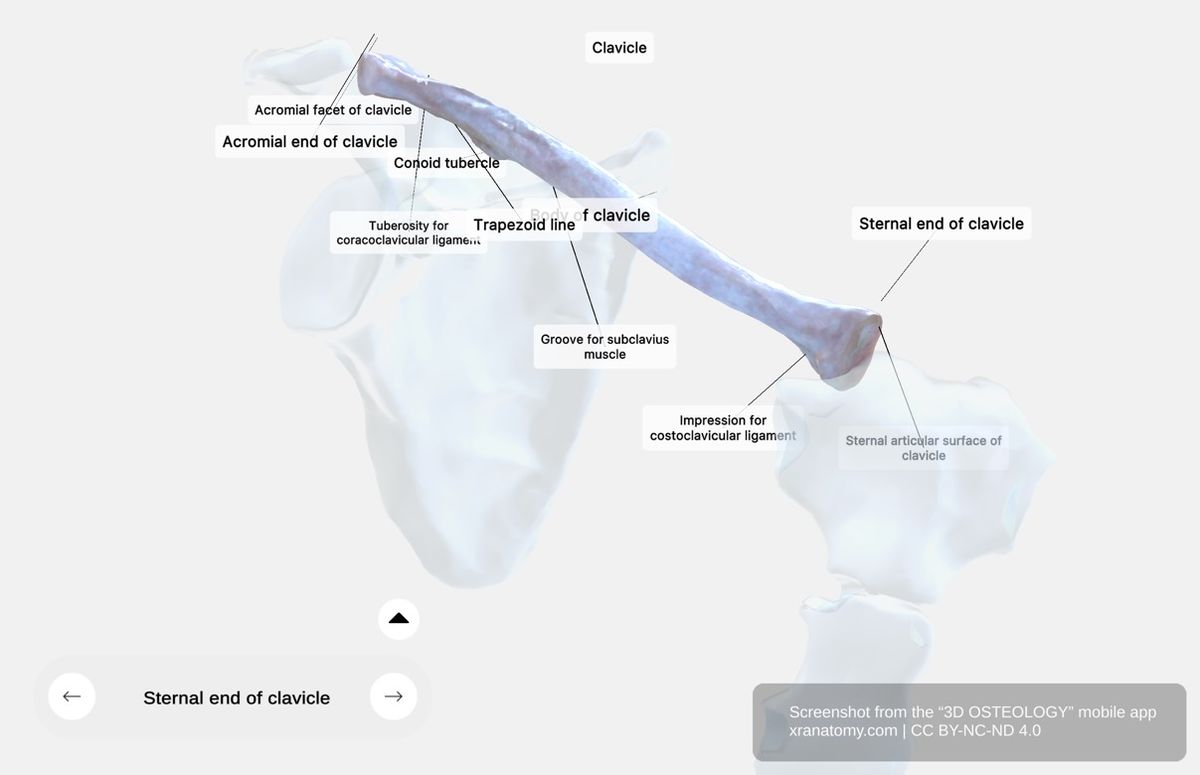

Sternal end of clavicle 360-degree viewer showing triangular articular surface for sternoclavicular joint and costoclavicular ligament attachment site
3D OSTEOLOGY
Get the Full 3D Experience

Sternal End of the Clavicle, Preview from the app. Download 3D OSTEOLOGY for full 3D control—multiple views, x-ray mode, and unlimited zoom.

Shape

What is the shape of the sternal end?

  • Triangular and tilts slightly inward

Features

What surface does the sternal end have?

  • Smooth, joint-like surface for articulation with the sternoclavicular disc

Function

What is the function of the sternal end?

  • Ensures proper alignment with the disc

Rough Patch

What is the rough patch on the sternal end?

  • Location: Inner side, more than 2 cm in length
  • Function: Attachment point for the costoclavicular ligament
  • Role: Stabilizes your clavicle

BODY OF THE CLAVICLE

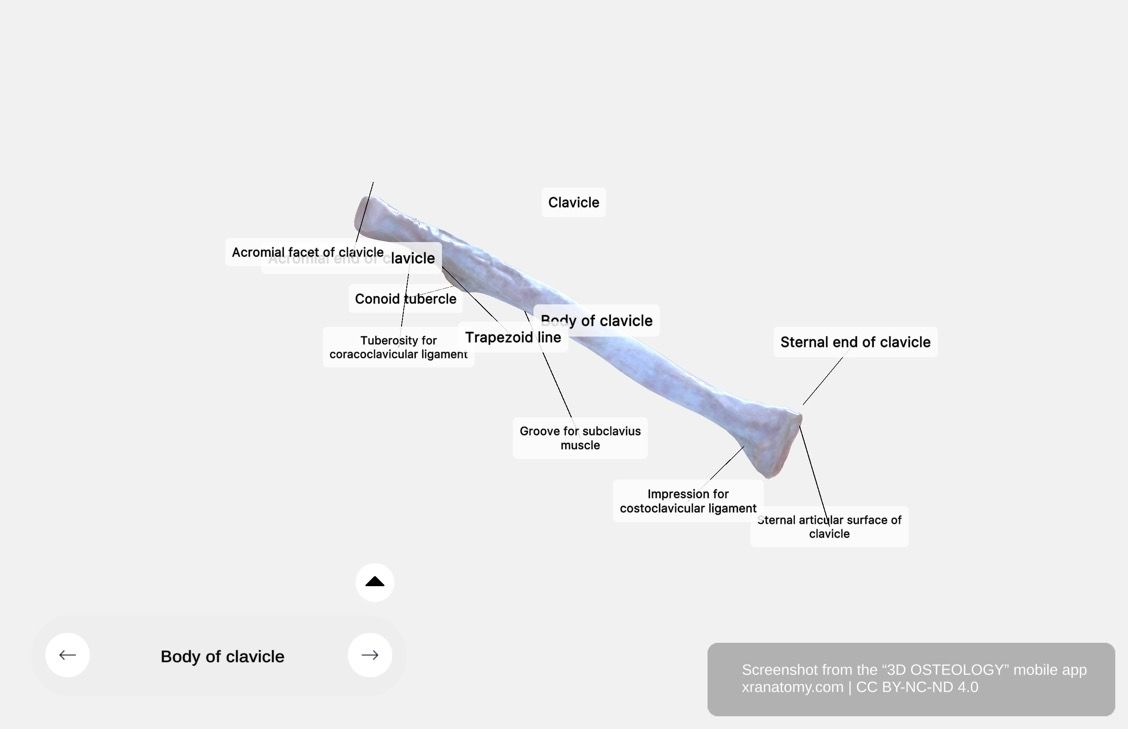

Body of clavicle 360-degree viewer showing double curvature, cylindrical medial portion, flattened lateral portion, and groove for subclavius muscle
3D OSTEOLOGY
Get the Full 3D Experience

Body of the Clavicle, Preview from the app. Download 3D OSTEOLOGY for full 3D control—multiple views, x-ray mode, and unlimited zoom.

Characteristics

What are the characteristics of the clavicle body?

  • Double curvature
  • Medial two-thirds: Cylindrical or prismoid shape
  • Outer third: Flattened

Groove for Subclavius Muscle

Where is the groove for the subclavius muscle?

  • Location: Underside of your clavicle
  • Function: Provides attachment for your subclavius muscle

ACROMIAL END

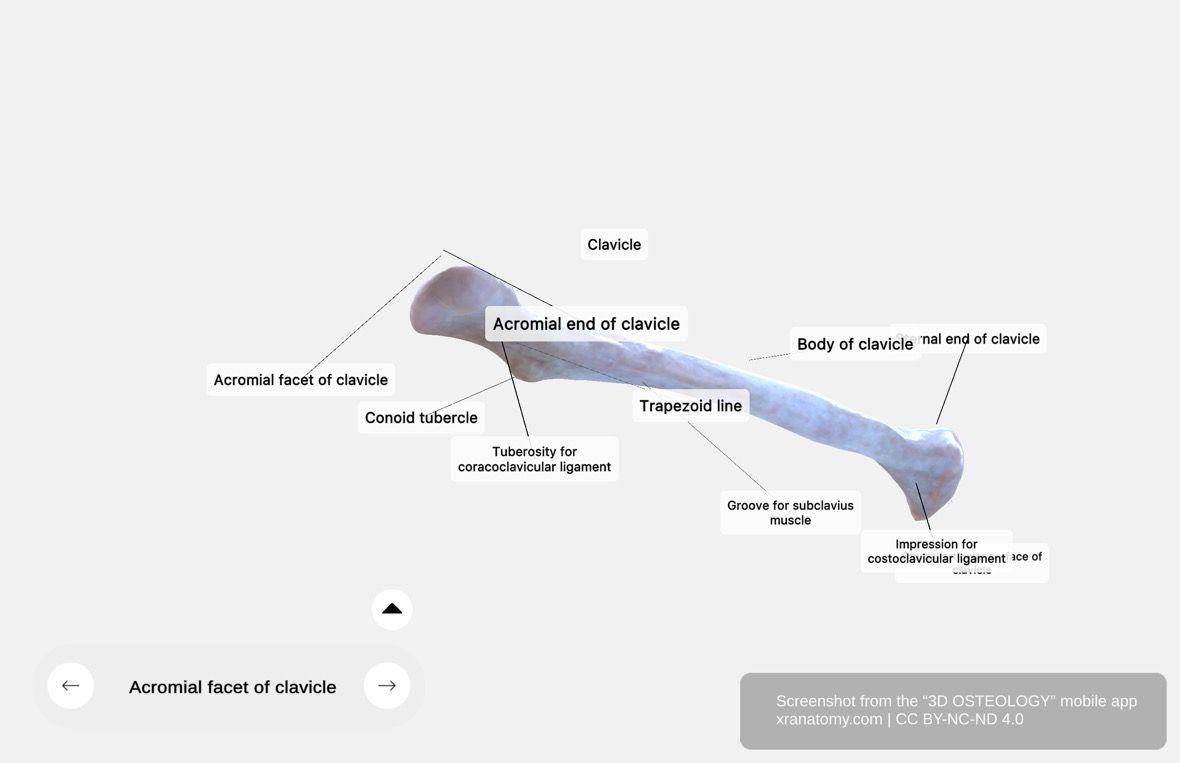

Acromial end of clavicle 360-degree viewer showing acromial facet, conoid tubercle, and trapezoid line for coracoclavicular ligament attachment
3D OSTEOLOGY
Get the Full 3D Experience

Acromial End of the Clavicle, Preview from the app. Download 3D OSTEOLOGY for full 3D control—multiple views, x-ray mode, and unlimited zoom.

Features

What are the features of the acromial end?

  • Small, flattened surface
  • Slopes slightly downward

Function

What does the acromial end articulate with?

  • Articulates with the acromion of your scapula

Acromial Facet

What is the acromial facet?

  • Flat surface for articulation with the acromion

Conoid Tubercle

What is the conoid tubercle?

  • Location: Near the junction of the medial two-thirds and lateral third
  • Relation: Above the coracoid process of the scapula
  • Function: Attachment point for the conoid ligament (stabilizes your shoulder)

Trapezoid Line

What is the trapezoid line?

  • Features:
    • Oblique ridge running forward and lateralward from the conoid tubercle
  • Function:
    • Provides attachment for the trapezoid ligament (stabilizes your shoulder by connecting your clavicle to your scapula)

BIBLIOGRAPHY

1. Henry G, Warren HL. Osteology. In: Anatomy of the Human Body. 20th ed. Philadelphia: Lea & Febiger; 1918. p. 129–97.
