3D CONTENT
3D OSTEOLOGY
3D NEUROCRANIUM

FRONTAL BONE ANATOMY

Author: Dr. Bogdan Leahu
← Temporal Bone Parietal Bone →

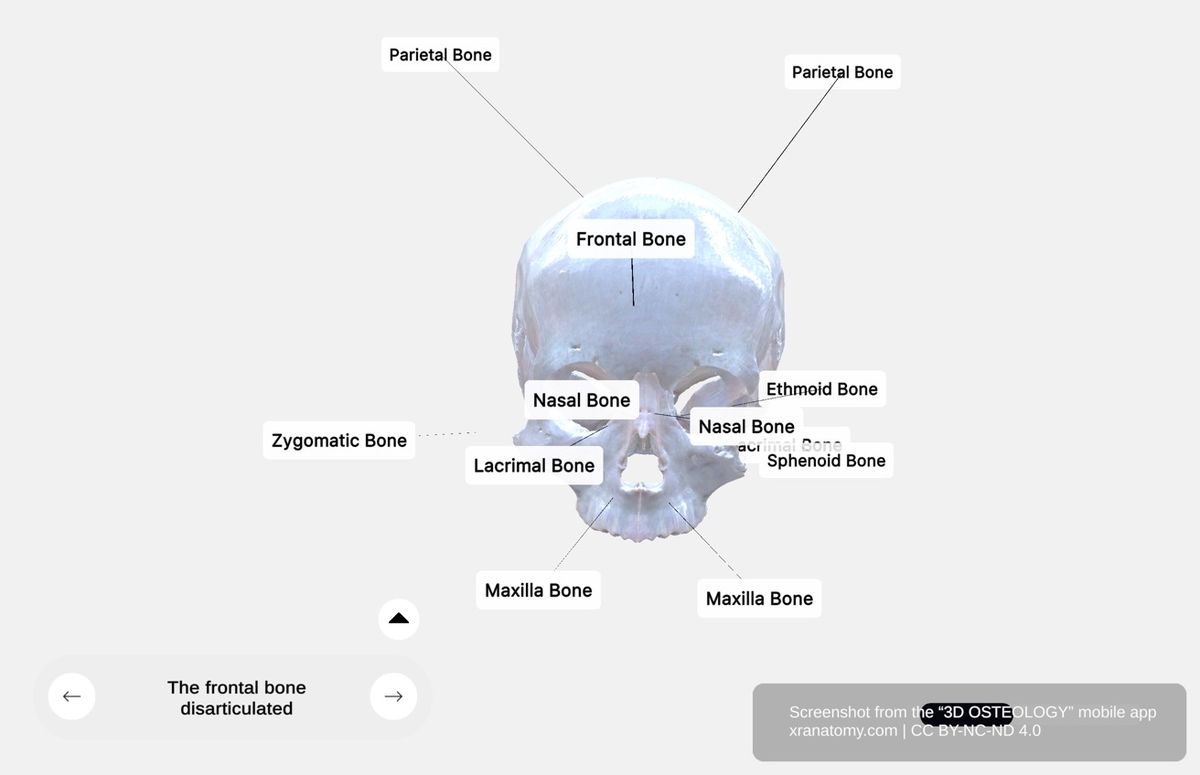

Frontal bone anatomy 360-degree interactive viewer showing articulations with sphenoid, ethmoid, parietal, nasal, maxillae, lacrimal, and zygomatic bones
3D OSTEOLOGY
Get the Full 3D Experience

Frontal Bone - Articulations, Preview from the app. Download 3D OSTEOLOGY for full 3D control—multiple views, x-ray mode, and unlimited zoom.

TABLE OF CONTENTS

In-Depth AR Atlas Available

Read the comprehensive anatomy description with AR illustrations and videos

Read AR Atlas →

GENERAL CHARACTERISTICS

What is the frontal bone?

  • Major cranial bone forming your forehead
  • Contributes to your orbital roofs
  • Contributes to anterior cranial floor

What does the frontal bone articulate with?

  • Articulations:
    • Sphenoid bone
    • Ethmoid bone
    • Paired parietal bones
    • Paired nasal bones
    • Paired maxillae
    • Paired lacrimal bones
    • Paired zygomatic bones

SQUAMOUS PART

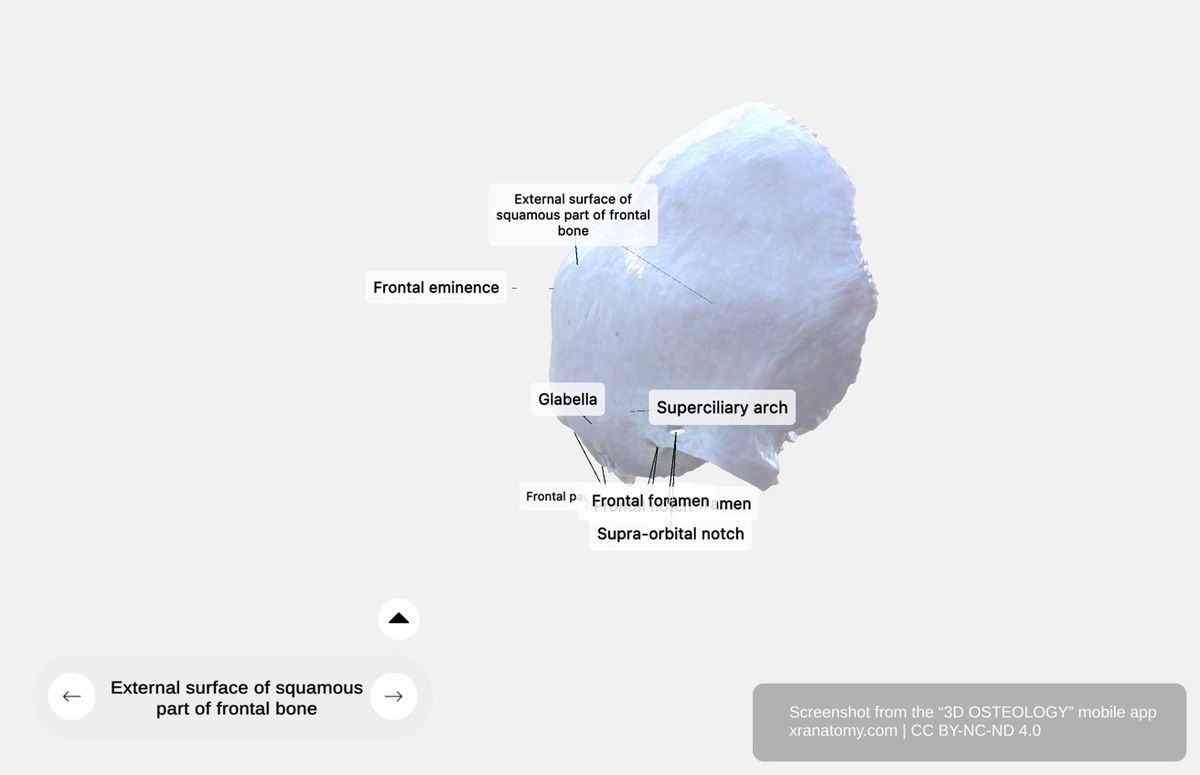

External surface of squamous part 360-degree viewer showing frontal eminences, superciliary arches, glabella, supraorbital margin, and forehead contour
3D OSTEOLOGY
Get the Full 3D Experience

External Surface of the Squamous Part, Preview from the app. Download 3D OSTEOLOGY for full 3D control—multiple views, x-ray mode, and unlimited zoom.

What is the squamous part of the frontal bone?

  • Vertical flattened region forming your forehead
  • External aspect is smooth and convex
  • Faces outward toward your scalp

Frontal Eminences

What are the frontal eminences?

  • Paired rounded prominences
  • Located approximately 3 cm above supraorbital margin
  • Positioned on either side of midline
  • Contribute to your forehead contour

Superciliary Arches

What are the superciliary arches?

  • Paired elevations
  • Located directly above supraorbital margin
  • Accentuate your brow prominence

Glabella

What is the glabella?

  • Smooth midline elevation
  • Situated between superciliary arches

Frontal Portion of Orbital Margin

What is the frontal portion of the orbital margin?

  • Forms inferior boundary of squamous part

External Surface Features

What is the supraorbital notch or foramen?

  • Smooth convex surface
  • Forms your visible forehead area
  • Supraorbital Notch or Foramen:
    • Located on medial aspect of supraorbital margin
    • Transmits neurovascular structures

What is the frontal notch or foramen?

  • Frontal Notch or Foramen:
    • Positioned medial to supraorbital notch
    • Provides passage for vessels and nerves
    • Supplies your forehead region

TEMPORAL SURFACE

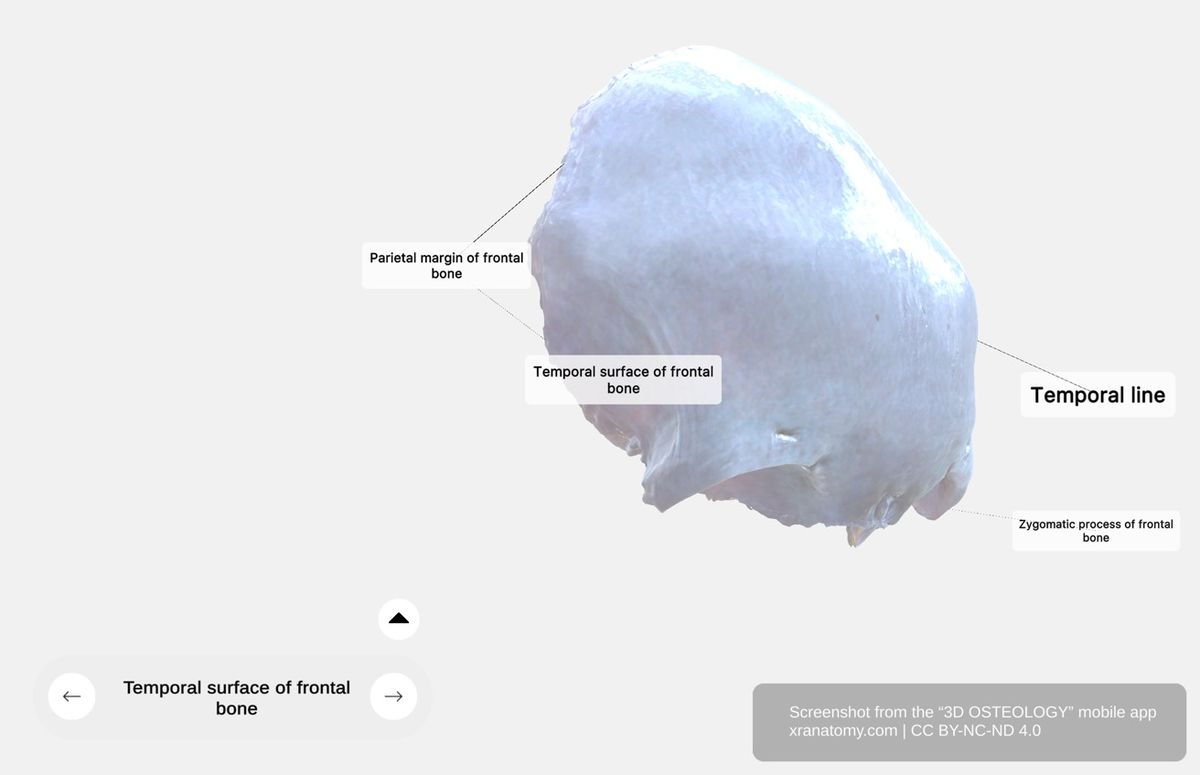

Temporal surface of frontal bone 360-degree viewer showing zygomatic process, temporal line, parietal margin, and temple region contribution
3D OSTEOLOGY
Get the Full 3D Experience

Temporal Surface of the Frontal Bone, Preview from the app. Download 3D OSTEOLOGY for full 3D control—multiple views, x-ray mode, and unlimited zoom.

What is the temporal surface of the frontal bone?

  • Lateral aspect of frontal bone
  • Contributes to your temple region

What is the parietal margin?

  • Parietal Margin — posterior border
    • Articulates with parietal bones

What is the zygomatic process of the frontal bone?

  • Zygomatic Process — prominent lateral projection
    • Located at lateral end of supraorbital margin
    • Articulates with zygomatic bone
    • Forms part of lateral orbital wall
    • Forms part of orbital rim

What is the temporal line?

  • Temporal Line:
    • Extends superiorly from zygomatic process
    • Extends posteriorly from zygomatic process
    • Divides into superior and inferior temporal lines
    • Attachment for temporalis muscle
    • Attachment for temporal fascia

INTERNAL SURFACE OF SQUAMOUS PART

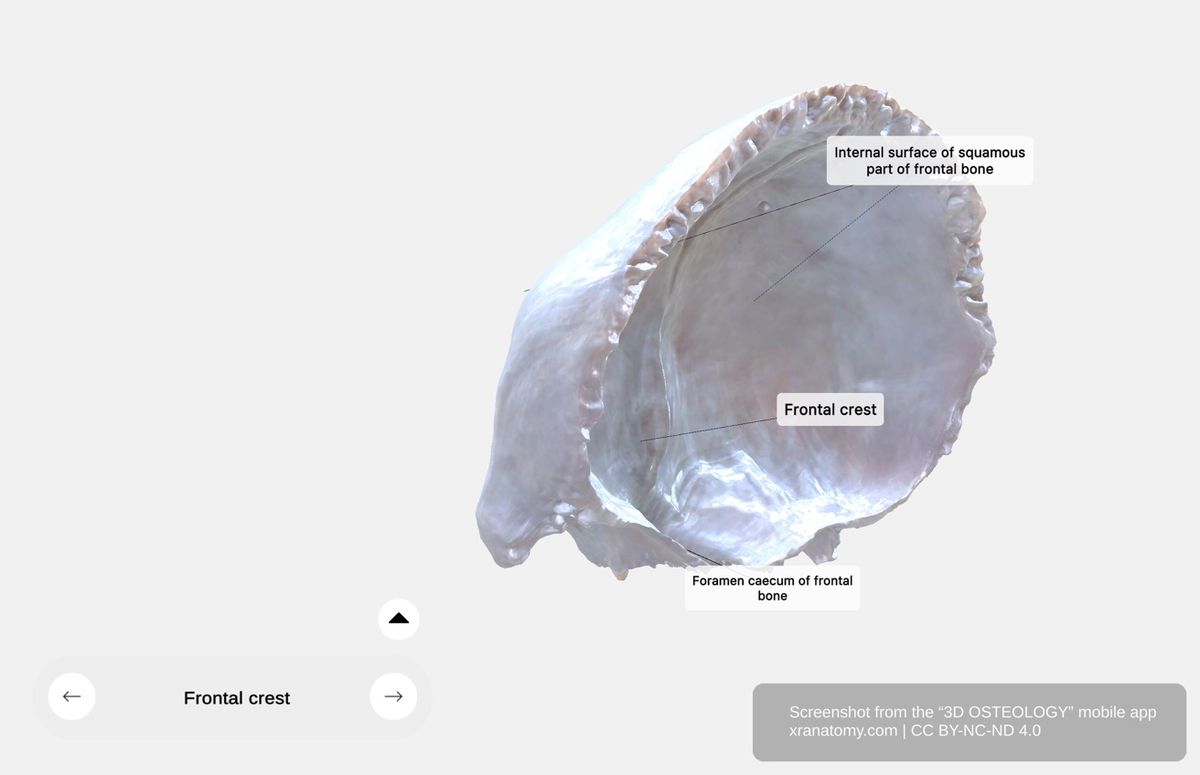

Internal surface of squamous part 360-degree viewer showing frontal crest, foramen cecum, sagittal sulcus, and cranial cavity features
3D OSTEOLOGY
Get the Full 3D Experience

Internal Surface of the Squamous Part, Preview from the app. Download 3D OSTEOLOGY for full 3D control—multiple views, x-ray mode, and unlimited zoom.

What is the internal surface of the squamous part?

  • Faces your cranial cavity

What is the frontal crest?

  • Frontal Crest — midline ridge
    • Formed by convergence of sagittal sulcus margins
    • Located at inferior midline

What is the foramen cecum?

  • Foramen Cecum:
    • Located at inferior end of frontal crest
    • Formed by small notch uniting with ethmoid bone
    • Transmits small veins
    • Connects nasal cavity to superior sagittal sinus

NASAL PART

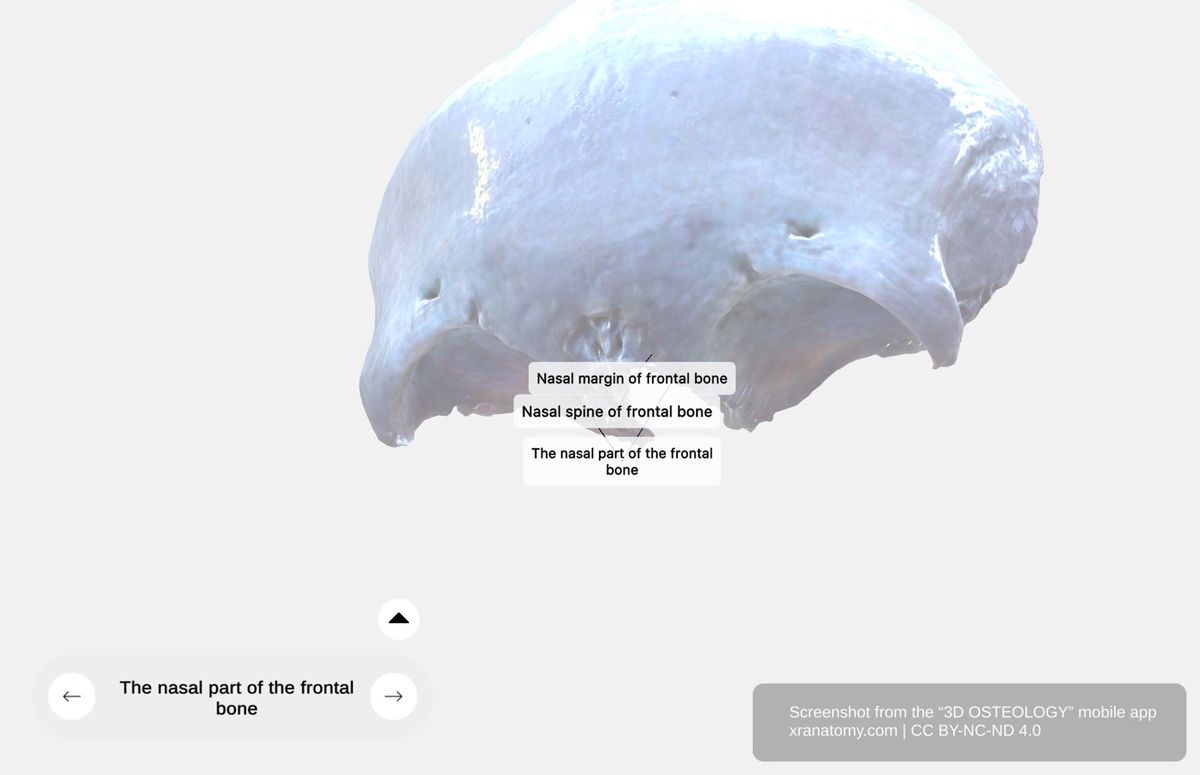

Nasal part of frontal bone 360-degree viewer showing nasal spine, nasal margin, and articulations with nasal bones and perpendicular plate of ethmoid
3D OSTEOLOGY
Get the Full 3D Experience

Nasal Part of the Frontal Bone, Preview from the app. Download 3D OSTEOLOGY for full 3D control—multiple views, x-ray mode, and unlimited zoom.

What is the nasal part of the frontal bone?

  • Inferior extension of frontal bone
  • Positioned between supraorbital margins

What is the nasal spine of the frontal bone?

  • Nasal Spine — midline bony projection
    • Extends inferiorly from center of nasal part
    • Articulates with nasal bones
    • Articulates with perpendicular plate of ethmoid

What is the nasal margin?

  • Nasal Margin — inferior border
    • Articulates with superior borders of nasal bones
    • Contributes to your nasal bridge formation

ORBITAL PART

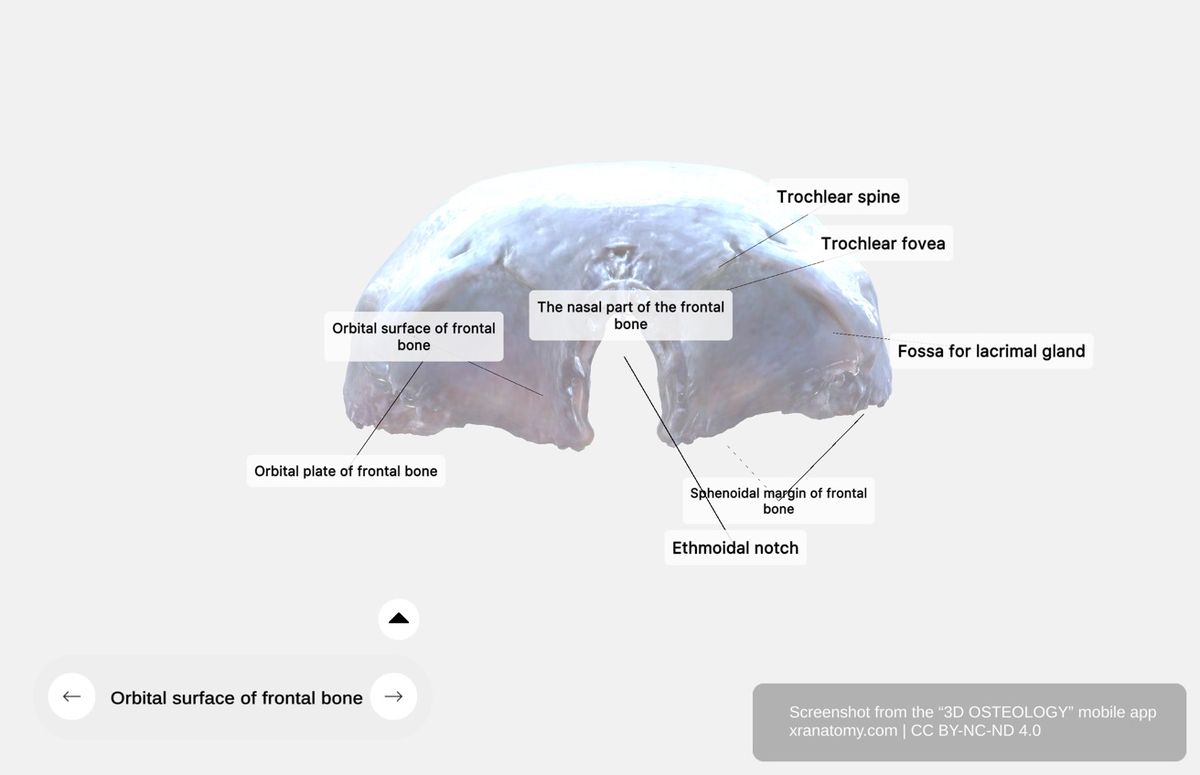

Orbital part of frontal bone 360-degree viewer showing orbital plates, ethmoidal notch, trochlear fovea, fossa for lacrimal gland, and sphenoidal margin
3D OSTEOLOGY
Get the Full 3D Experience

Orbital Part of the Frontal Bone, Preview from the app. Download 3D OSTEOLOGY for full 3D control—multiple views, x-ray mode, and unlimited zoom.

What is the orbital part of the frontal bone?

  • Composed of two horizontal triangular plates called orbital plates
  • Forms your orbital roofs
  • Forms anterior cranial fossa floor

What is the ethmoidal notch?

  • Ethmoidal Notch — gap between orbital plates
    • Accommodates cribriform plate of ethmoid bone

What is the orbital surface?

  • Orbital Surface:
    • Inferior-facing aspect of each orbital plate
    • Directed into the orbit

Key Features of Orbital Surface

What is the trochlear fovea?

  • Trochlear Fovea — small medial depression
    • Located near nasal part
    • Attachment site for trochlea
    • Serves superior oblique muscle

What is the fossa for the lacrimal gland?

  • Fossa for Lacrimal Gland — shallow depression
    • Located laterally
    • Houses your lacrimal gland

What is the sphenoidal margin?

  • Sphenoidal Margin:
    • Articulates with greater wing of sphenoid bone
    • Completes anterior cranial fossa

FRONTAL SINUSES

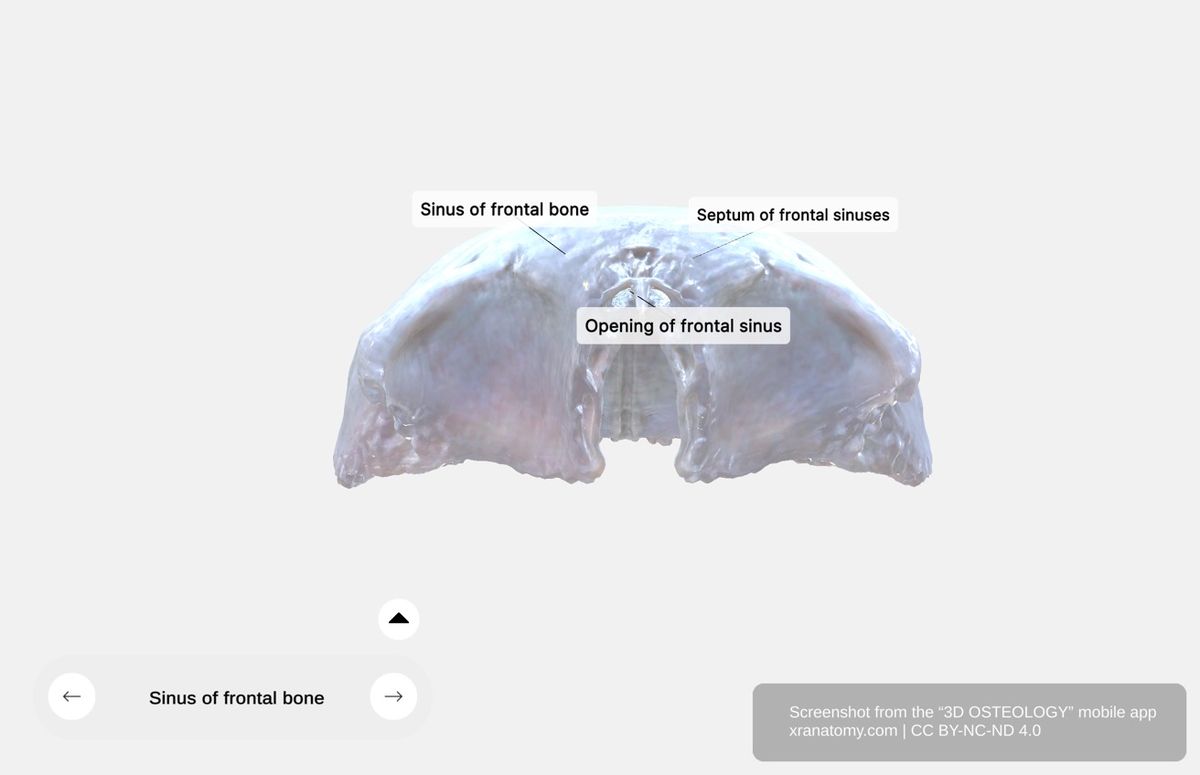

Frontal sinuses 360-degree viewer showing paired irregular cavities, septum of frontal sinuses, drainage openings, and position superior to orbits
3D OSTEOLOGY
Get the Full 3D Experience

Frontal Sinuses, Preview from the app. Download 3D OSTEOLOGY for full 3D control—multiple views, x-ray mode, and unlimited zoom.

What are the frontal sinuses?

  • Paired irregular cavities
  • Located within frontal bone
  • Positioned superior to your orbits
  • Positioned posterior to superciliary arches

What is the septum of the frontal sinuses?

  • Septum of Frontal Sinuses — thin bony partition
    • Separates the two cavities
    • Variable position
    • Often results in asymmetrical sinuses

What are the drainage openings of the frontal sinuses?

  • Drainage Openings:
    • Open into your nasal cavity
    • Located on either side of nasal spine
    • Positioned anterior to ethmoidal notch

What are the functions of the frontal sinuses?

  • Functions:
    • Humidification of the air you breathe in
    • Enhancement of your voice resonance
    • Reduction of your skull weight

BIBLIOGRAPHY

1. Henry G, Warren HL. Osteology. In: Anatomy of the Human Body. 20th ed. Philadelphia: Lea & Febiger; 1918. p. 129–97.
