LEFT CORONARY ARTERY

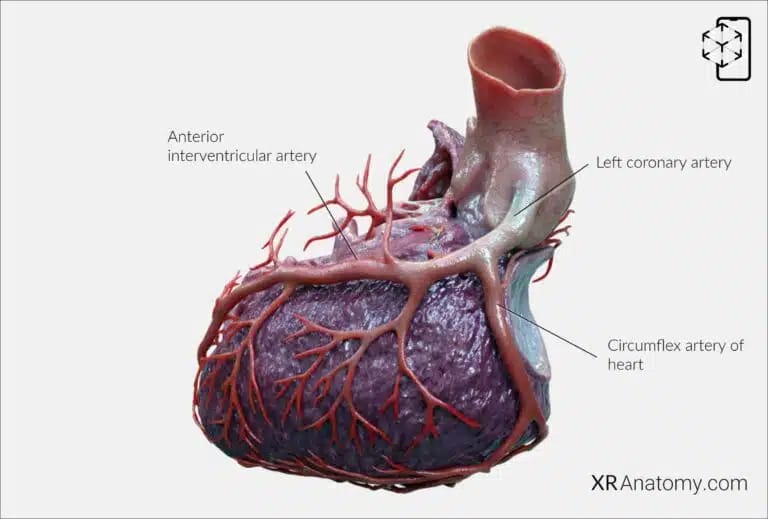

AR Figure 103 – Left coronary artery: Overview

AR Figure 103 – Left coronary artery: Overview, Augmented Illustration by B. Leahu – MD. This image is licensed under the Creative Commons Attribution-NonCommercial-NoDerivs 3.0 Unported (CC BY-NC-ND 3.0).

Left coronary artery: This is the artery that originates from the left side of the aorta. Most commonly, it bifurcates into two different arteries: the circumflex artery and the left anterior descending artery. It supplies oxygenated blood to the left part of the heart. (1,3)

ANTERIOR INTERVENTRICULAR ARTERY

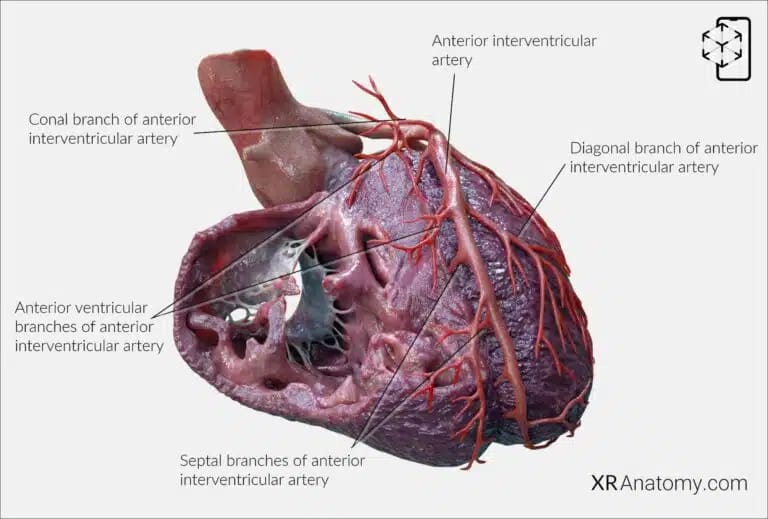

AR Figure 104 – Left Coronary Artery: Septal branches

AR Figure 104 – Left Coronary Artery: Septal branches, Augmented Illustration by B. Leahu – MD. This image is licensed under the Creative Commons Attribution-NonCommercial-NoDerivs 3.0 Unported (CC BY-NC-ND 3.0).

Anterior interventricular artery: This artery originates from the left main coronary artery, descends along the interventricular sulcus, and gives rise to other important branches. (1,2,3)

Conal branch of anterior interventricular artery: A small branch that supplies the conus arteriosus, part of the right ventricle of the heart. (1,3)

Anterior ventricular branches of anterior interventricular artery: These branches supply the anterior wall of the heart. (2,3)

Diagonal branch of anterior interventricular artery: Commonly branches off diagonally to supply blood to the left side of the heart. (1,3)

Septal branches of anterior interventricular artery: Branch off to supply a significant portion of the interventricular septum. (1,3)

CIRCUMFLEX ARTERY OF HEART

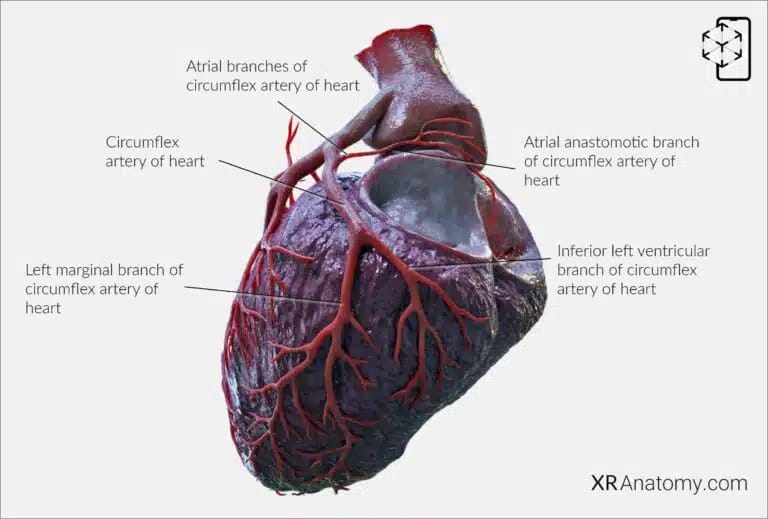

AR Figure 105 – Left Coronary Artery: Circumflex artery

AR Figure 105 – Left Coronary Artery: Circumflex artery, Augmented Illustration by B. Leahu – MD. This image is licensed under the Creative Commons Attribution-NonCommercial-NoDerivs 3.0 Unported (CC BY-NC-ND 3.0).

Circumflex artery of heart: Curves around the heart, supplying blood to the left atrium and the side and back of the left ventricle. (1,2,3)

Atrial branches of circumflex artery of heart: Supply blood to the left atrium of the heart. (2,3)

Atrial anastomotic branch of circumflex artery of heart: A connecting branch between the circumflex artery and other arteries supplying the left atrium.

Left marginal branch of circumflex artery of heart: Supplies blood to the lateral wall of the left ventricle. (1,2,3)

Inferior left ventricular branch of circumflex artery of heart: Descends to the inferior wall of the left ventricle, supplying it with blood. (2,3)

BIBLIOGRAPHY

1. Gray H, Lewis W. Angiology. In: Anatomy of the Human Body. 1918. p. 526–542.

2. Gosling JA, Harris PF, Humpherson JR, Whitmore I, Willan PLT. Human anatomy: color atlas and textbook. 6th ed. 2017. 45–58 p.

3. Anderson RH, Spicer DE, Hlavacek AM, Cook AC, Backer CL. (2013). Anatomy of the cardiac chambers. In Wilcox’s Surgical Anatomy of the Heart (4th ed., pp. 13–50). Cambridge University Press.

4. Fritsch H, Kuehnel W. Color Atlas of Human Anatomy. Vol. Volume 2, Color Atlas and Textbook of Human Anatomy. 2005. 10–42 p.

5. Moore K, Dalley A, Agur A. Clinically Oriented Anatomy. Vol. 7ed, Clinically Oriented Anatomy. 2014. 132–151 p.

6. Ho SYen. Anatomy for Cardiac Electrophysiologists: A Practical Handbook. Cardiotext Pub; 2012. 5–27 p.

7. The structure and organization of anatomical terms used in this text follow the guidelines provided by FIPAT (2019) in their publication: FIPAT. (2019). Terminologia Anatomica (2nd ed.). FIPAT.library.dal.ca. Federative International Programme for Anatomical Terminology. Retrieved May 7, 2023, from https://fipat.library.dal.ca/TA2/
