RIBS ANATOMY

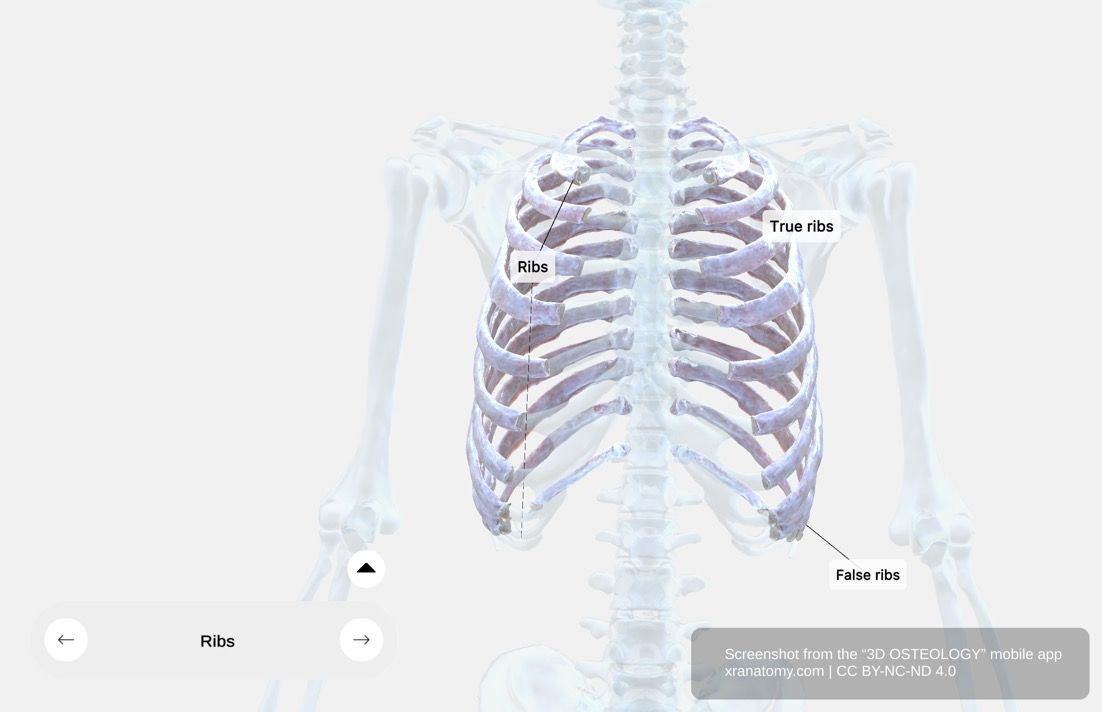

Ribs anatomy 360-degree interactive viewer showing twelve paired bones of the thoracic cage with vertebral and sternal articulations

Ribs - General Structure, Preview from the app. Download 3D OSTEOLOGY for full 3D control—multiple views, x-ray mode, and unlimited zoom.

GENERAL FEATURES

Ribs anatomy showing twelve paired bones comprising the thoracic cage with posterior vertebral articulation and anterior cartilage termination

Ribs - General Features, Sourced from the app 3D OSTEOLOGY

  • Twelve paired bones comprising the thoracic cage
  • Provide protection for thoracic organs
  • Posterior articulation with vertebral column
  • Anterior termination as cartilage

CLASSIFICATION

  • Ribs are classified based on their structural features and sternal attachment

Based on Structural Features

  • Typical Ribs:
    • Share common structural characteristics
  • Atypical Ribs:
    • Display unique features not found in all ribs
    • Include ribs 1, 2, 10, 11, and 12

Based on Sternal Attachment

True Ribs (Vertebro-sternal Ribs)

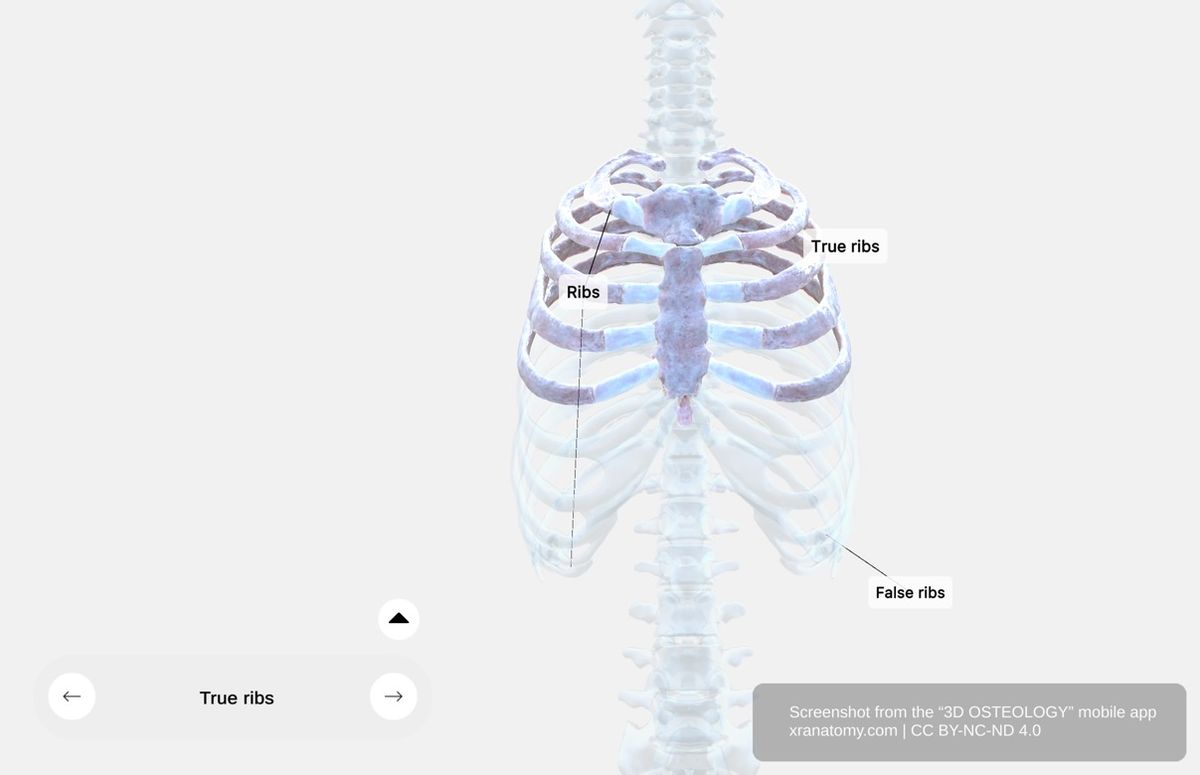

True ribs 360-degree viewer showing ribs 1 through 7 with direct sternal attachment via individual costal cartilages

True Ribs (Ribs 1-7), Preview from the app. Download 3D OSTEOLOGY for full 3D control—multiple views, x-ray mode, and unlimited zoom.

  • Comprise ribs 1 through 7
  • Connect directly to sternum via individual costal cartilages
False Ribs

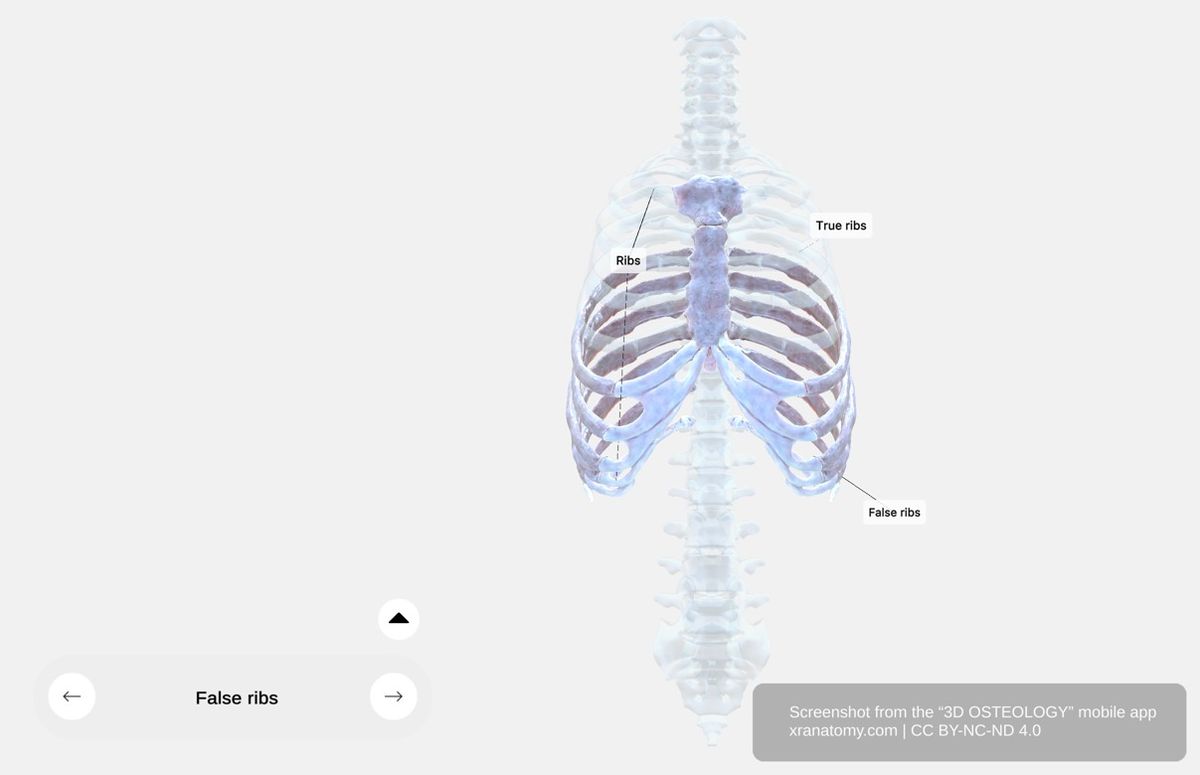

False ribs 360-degree viewer showing ribs 8 through 12 without direct sternal attachment including vertebrochondral and floating ribs

False Ribs (Ribs 8-12), Preview from the app. Download 3D OSTEOLOGY for full 3D control—multiple views, x-ray mode, and unlimited zoom.

  • Comprise ribs 8 through 12
  • Lack direct sternal attachment
  • Subdivided into:
    • Vertebrochondral Ribs (ribs 8–10):
      • Attach indirectly to sternum
      • Costal cartilages join cartilage of rib above
    • Floating Ribs (Vertebral Ribs) (ribs 11–12):
      • No anterior attachment to sternum
      • Terminate freely in posterior abdominal musculature

BIBLIOGRAPHY

1. Henry G, Warren HL. Osteology. In: Anatomy of the Human Body. 20th ed. Philadelphia: Lea & Febiger; 1918. p. 129–97.
