STERNUM ANATOMY

Author: Dr. Bogdan Leahu
← Rib Bones of Upper Limb →

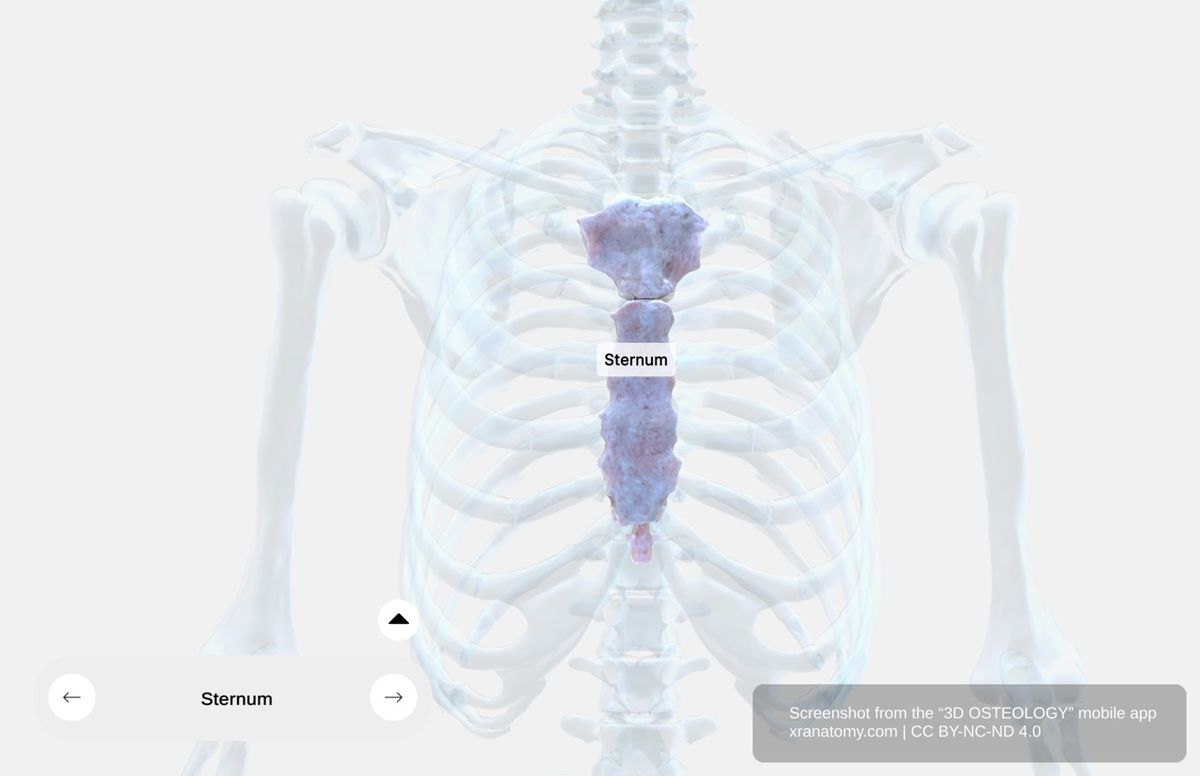

Sternum anatomy 360-degree interactive viewer showing manubrium, sternal body, xiphoid process, clavicular notches, and costal notches
3D OSTEOLOGY
Get the Full 3D Experience

Sternum - General Structure, Preview from the app. Download 3D OSTEOLOGY for full 3D control—multiple views, x-ray mode, and unlimited zoom.

TABLE OF CONTENTS

GENERAL CHARACTERISTICS

What is the sternum?

  • Long, flat bone located in the center of your anterior thoracic wall
  • Divided into three parts: manubrium, body, and xiphoid process

What does the sternum protect?

  • Protects vital organs including your heart, lungs, and major blood vessels
  • Supports your respiratory movements by serving as a stable attachment point for the ribs
  • Contributes to the flexibility and functionality of your thoracic cage

MANUBRIUM

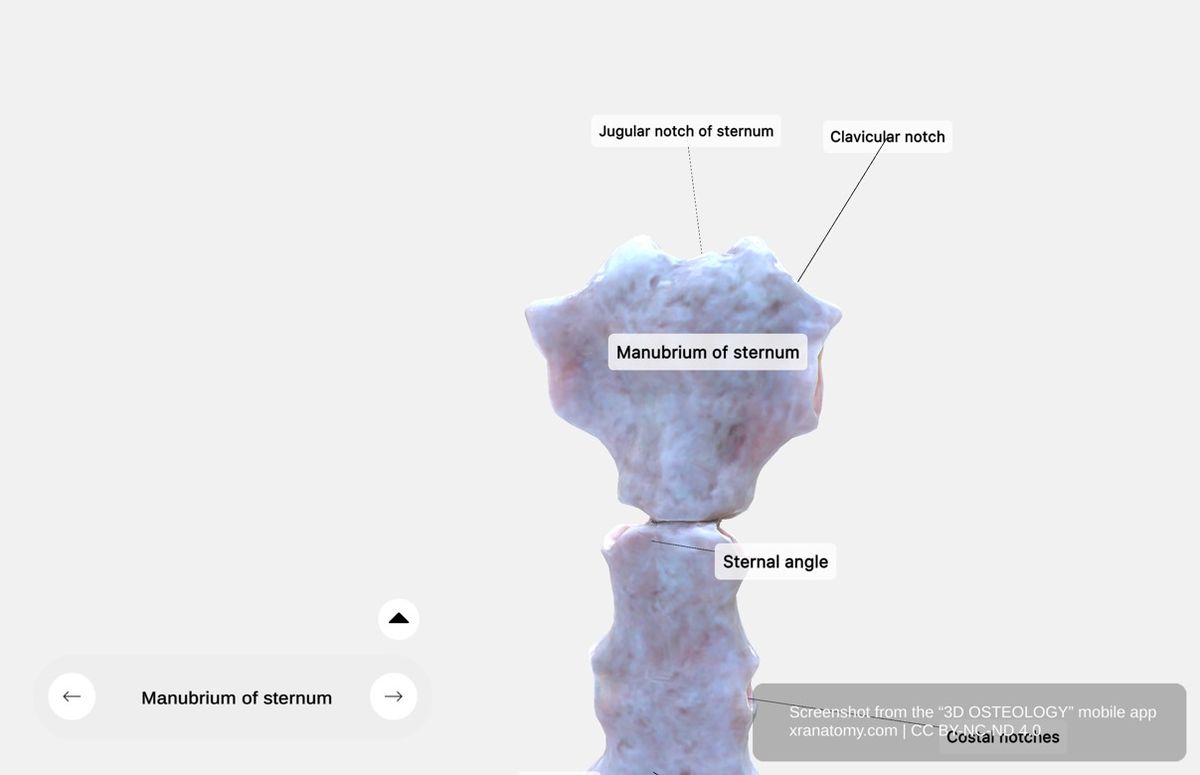

Manubrium of sternum 360-degree viewer showing clavicular notches, jugular notch, and sternal angle
3D OSTEOLOGY
Get the Full 3D Experience

Manubrium of the Sternum, Preview from the app. Download 3D OSTEOLOGY for full 3D control—multiple views, x-ray mode, and unlimited zoom.

What is the manubrium?

  • Upper section of the sternum, characterized by its triangular shape
  • Wider and thicker at the top, gradually narrowing toward the bottom
  • Connects with your clavicles and the first two pairs of ribs
  • Provides structural support and facilitates your upper limb movement

Clavicular Notches

What are the clavicular notches?

  • Oval-shaped surfaces on the upper edge of the manubrium
  • Facilitate the joining of the manubrium with your clavicles
  • Allow for your upper limb movement

Jugular Notch

What is the jugular notch?

  • Central dip at the top of the manubrium
  • Located between the points where your clavicles meet the sternum
  • Serves as an important anatomical landmark

Sternal Angle

What is the sternal angle?

  • Prominent ridge at the junction of the manubrium and the body of the sternum
  • Also called the Angle of Louis
  • Runs horizontally across your chest and serves as a key reference point for anatomical examination

STERNAL BODY

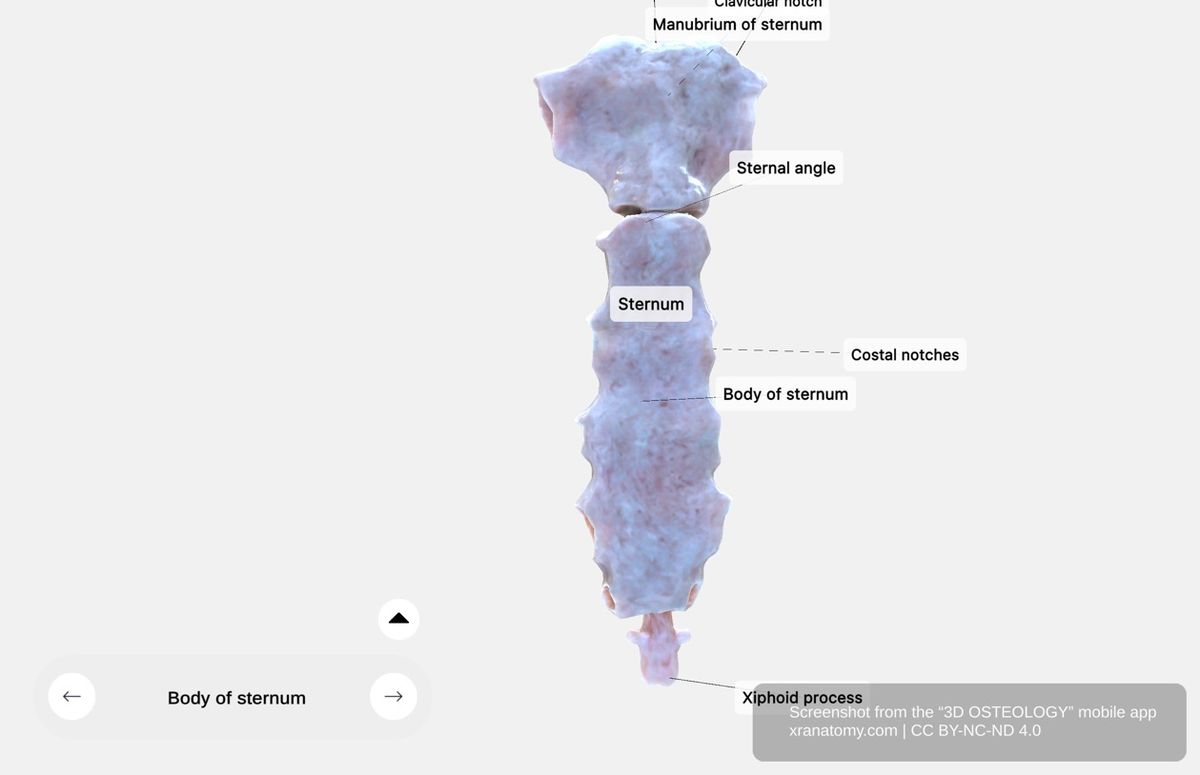

Body of sternum 360-degree viewer showing costal notches for attachment of third to seventh ribs
3D OSTEOLOGY
Get the Full 3D Experience

Body of the Sternum, Preview from the app. Download 3D OSTEOLOGY for full 3D control—multiple views, x-ray mode, and unlimited zoom.

What is the sternal body?

  • Elongated, thinner section located below the manubrium, extending down to the xiphoid process
  • Serves as a crucial attachment point for your third to seventh ribs via costal cartilages
  • Plays a key role in forming your thoracic cage and supporting your respiratory movements
  • Contributes to the overall stability and flexibility of your thoracic wall

Costal Notches

What are the costal notches?

  • Indentations along the sides of the sternum
  • Provide attachment points for your rib cartilages
  • Form a stable connection between your ribs and the sternum

XIPHOID PROCESS

Xiphoid process of sternum showing the smallest and most inferior part of the sternum, initially cartilaginous and ossifying with age
3D OSTEOLOGY
Xiphoid Process of the Sternum, Preview from the app. Licensed under CC BY-NC-ND 4.0. Sourced from 3D OSTEOLOGY.

What is the xiphoid process?

  • Smallest and most variable part of the sternum
  • Located at the lowest point of the sternum
  • Initially cartilaginous, ossifies with age to become rigid in adulthood

BIBLIOGRAPHY

1. Henry G, Warren HL. Osteology. In: Anatomy of the Human Body. 20th ed. Philadelphia: Lea & Febiger; 1918. p. 129–97.
