Author: Dr. Bogdan Leahu
← Left Ventricle Right Coronary Artery →

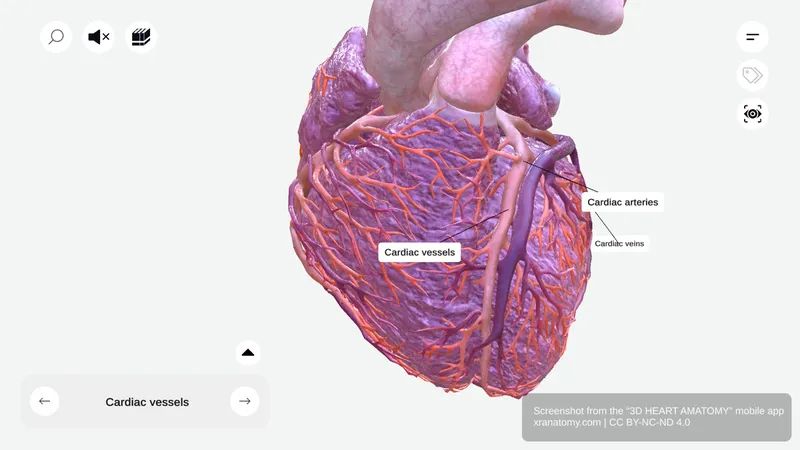

Cardiac vessels anatomy 360-degree interactive viewer showing coronary arteries, cardiac veins, and coronary sinus supplying the heart muscle
Get the Full 3D Experience Get Full Immersive Experience

Cardiac Vessels - Overview, Preview from the app.

TABLE OF CONTENTS

CARDIAC VESSELS

What are the cardiac vessels?

  • Also known as coronary vessels
  • Complex network of arteries and veins
  • Supply oxygen and nutrients to your heart muscle
  • Remove metabolic waste products from your myocardium

Two Main Categories

What are the two main categories of cardiac vessels?

  • Cardiac arteries
  • Cardiac veins

CARDIAC ARTERIES

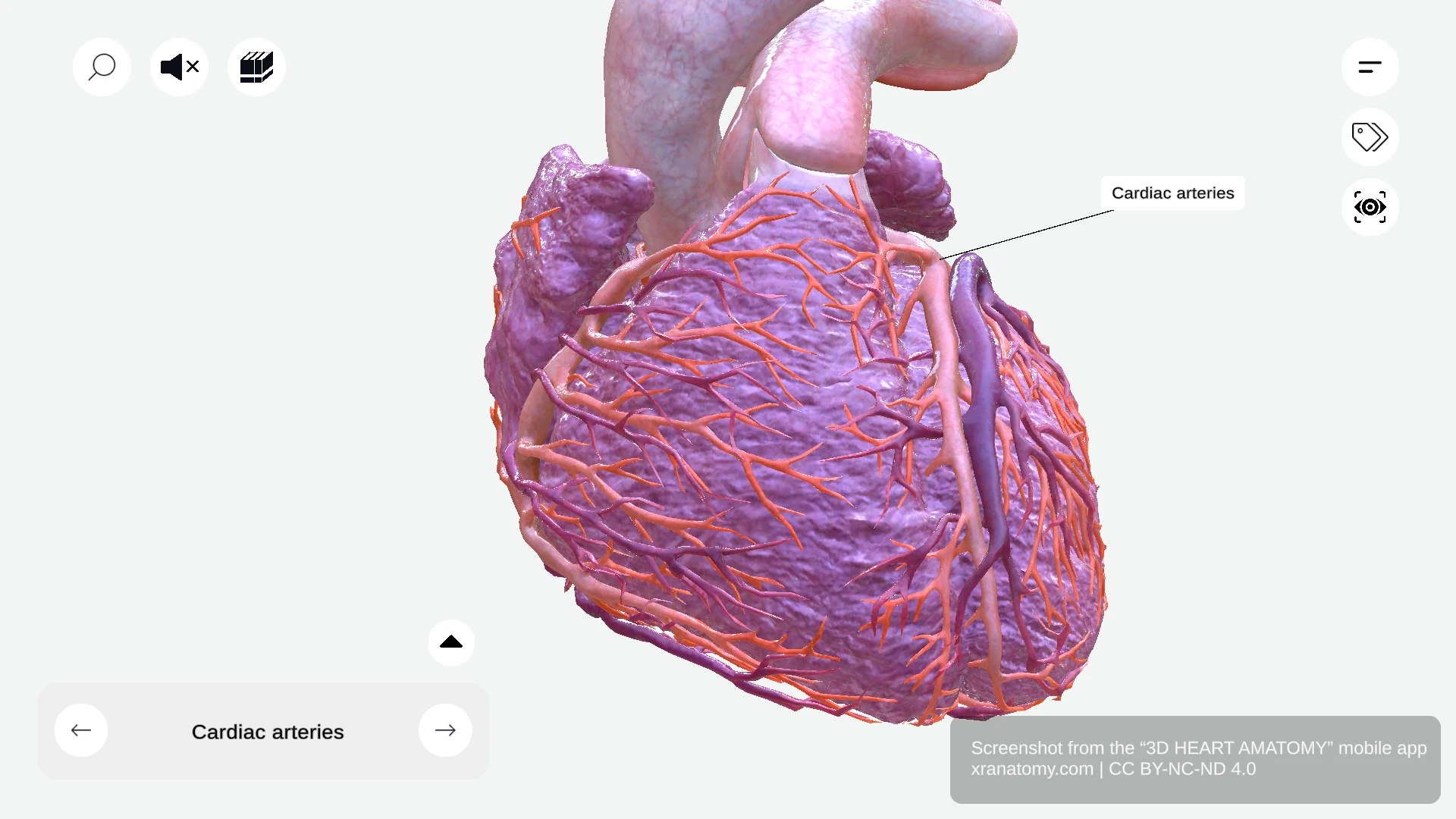

Cardiac arteries anatomy showing two main vessels branching from aorta, originating from aortic sinuses, coursing along atrioventricular groove
Cardiac Arteries, Preview from the app. Licensed under CC BY-NC-ND 4.0. Sourced from 3D HEART ANATOMY.

What are the cardiac arteries?

  • Two main vessels branching from aorta
  • Originate from aortic sinuses
  • Course along atrioventricular groove
  • Supply oxygenated blood to your myocardium

CARDIAC VEINS

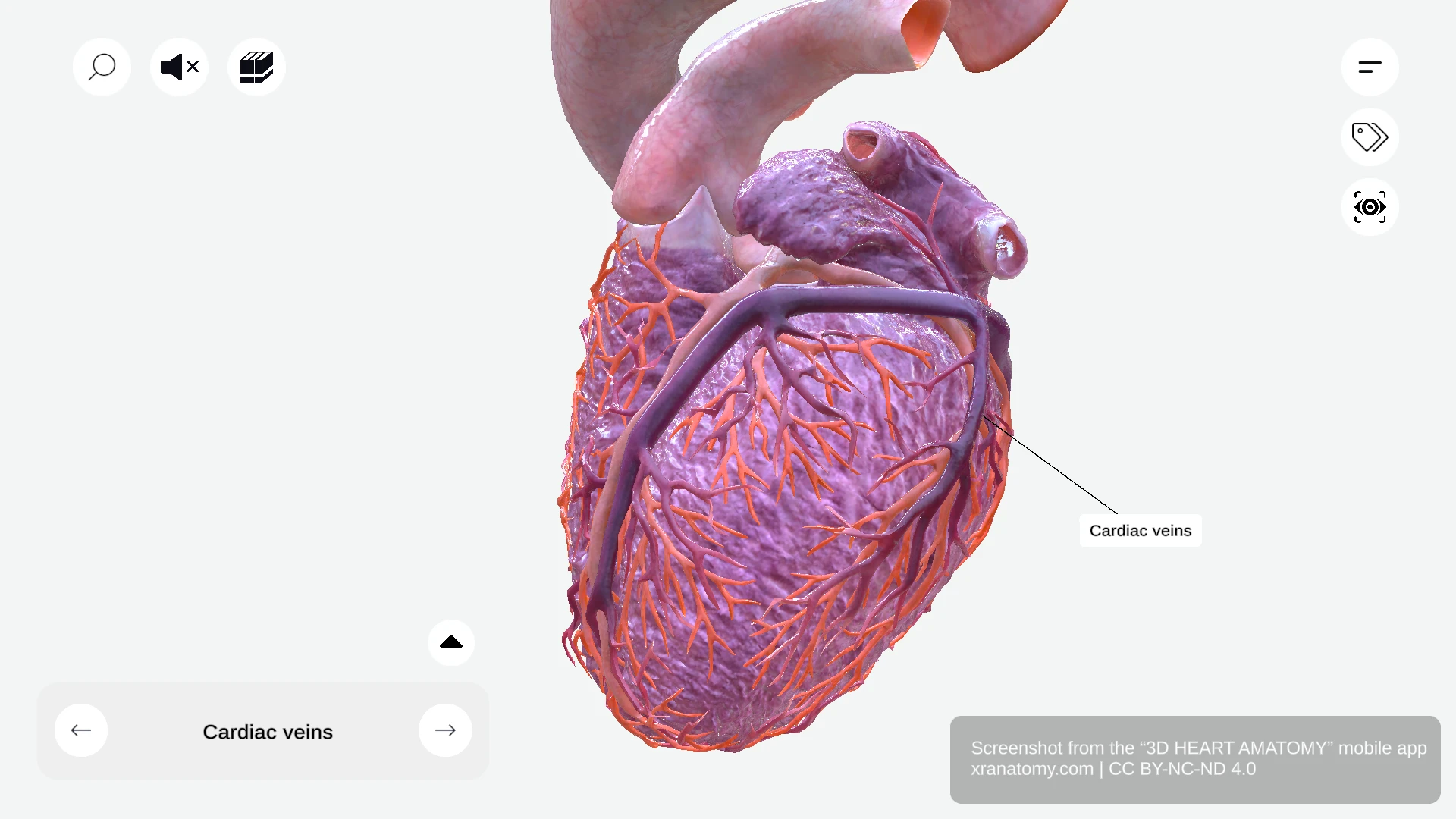

Cardiac veins anatomy showing network of veins draining myocardium, returning deoxygenated blood to right atrium via coronary sinus
Cardiac Veins, Preview from the app. Licensed under CC BY-NC-ND 4.0. Sourced from 3D HEART ANATOMY.

What are the cardiac veins?

  • Network of veins draining your myocardium
  • Return deoxygenated blood to your right atrium

Coronary Sinus

What is the coronary sinus?

  • Main venous structure of your heart
  • Collects blood from cardiac veins
  • Empties into right atrium

Anterior Cardiac Veins

What are the anterior cardiac veins?

  • Small veins on anterior surface
  • Drain anterior surface of your right ventricle
  • Empty directly into right atrium

Smallest Cardiac Veins

What are the smallest cardiac veins?

  • Also known as Thebesian veins
  • Minute veins within your heart wall
  • Drain directly into heart chambers
  • Primarily into right atrium
  • Also into right ventricle

BIBLIOGRAPHY

1. Gray H, Lewis W. Angiology. In: Anatomy of the Human Body. 1918. p. 526–542.

2. Gosling JA, Harris PF, Humpherson JR, Whitmore I, Willan PLT. Human anatomy: color atlas and textbook. 6th ed. 2017. 45–58 p.

3. Anderson RH, Spicer DE, Hlavacek AM, Cook AC, Backer CL. (2013). Anatomy of the cardiac chambers. In Wilcox’s Surgical Anatomy of the Heart (4th ed., pp. 13–50). Cambridge University Press.

4. Fritsch H, Kuehnel W. Color Atlas of Human Anatomy. Vol. Volume 2, Color Atlas and Textbook of Human Anatomy. 2005. 10–42 p.

5. Moore K, Dalley A, Agur A. Clinically Oriented Anatomy. Vol. 7ed, Clinically Oriented Anatomy. 2014. 132–151 p.

6. Ho SYen. Anatomy for Cardiac Electrophysiologists: A Practical Handbook. Cardiotext Pub; 2012. 5–27 p.

7. The structure and organization of anatomical terms used in this text follow the guidelines provided by FIPAT (2019) in their publication: FIPAT. (2019). Terminologia Anatomica (2nd ed.). FIPAT.library.dal.ca. Federative International Programme for Anatomical Terminology. Retrieved May 7, 2023, from https://fipat.library.dal.ca/TA2/
